Description
Key Features
- Fully programmable Castle feature set using Castle Link USB adapter
- Castle Field Link Programming Card (sold separately) compatible for select functions.
Overview

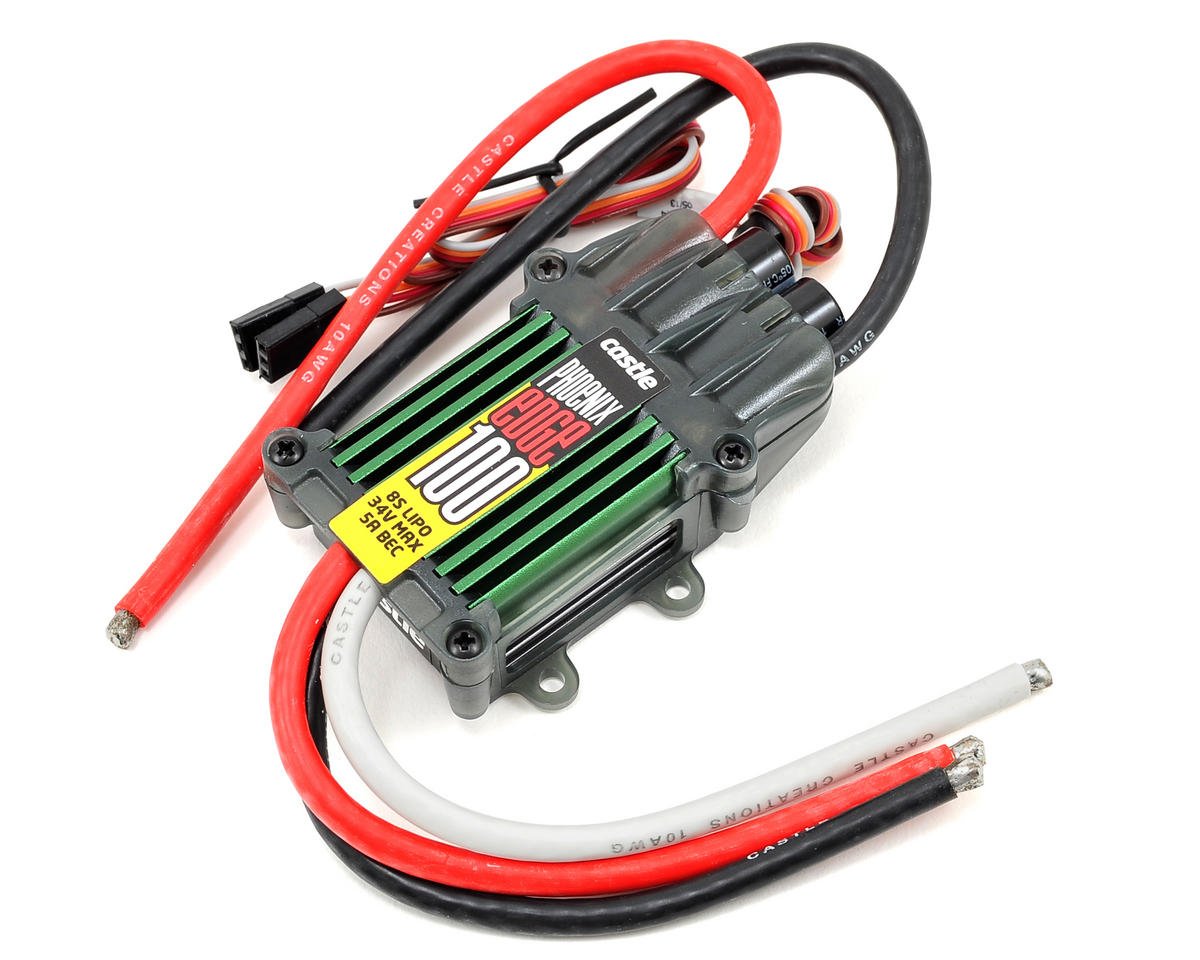

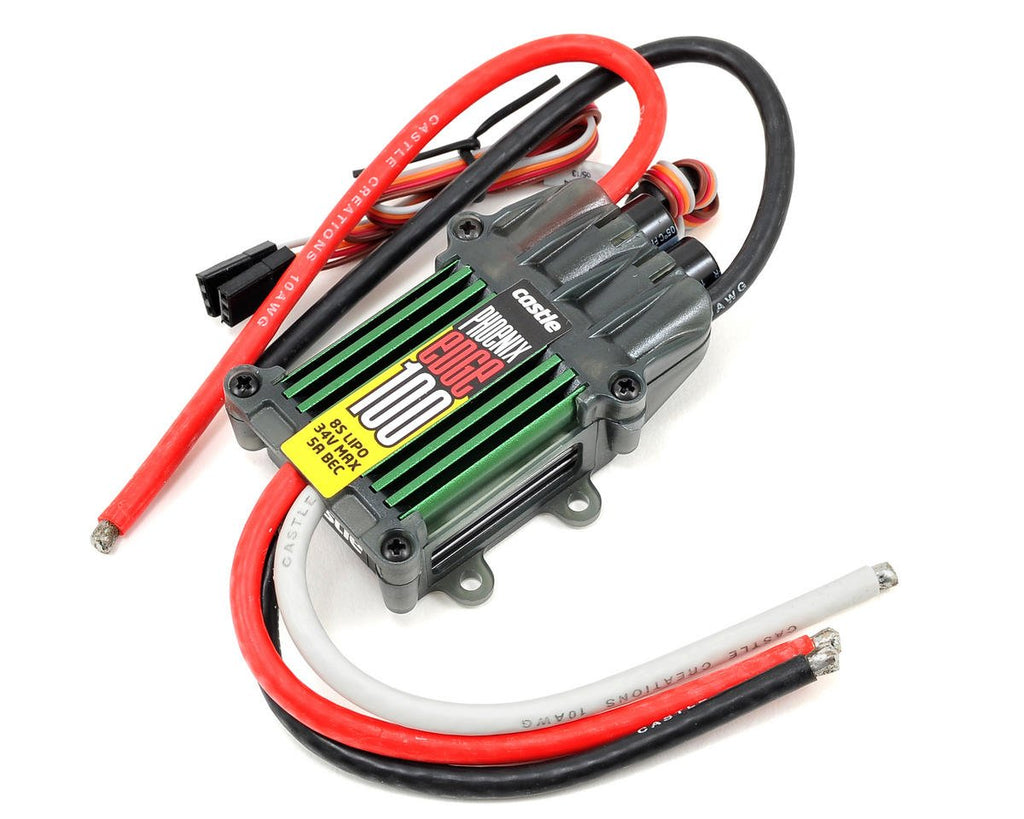

With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.
Product Specifications
| Input Voltage | 2S-8S LiPo |
| Part Type | Electronics |
| Product Height | 0.9 in (23.2mm) |
| BEC Voltage | 5.0-8.4V, user selectable |
| Programmable | Yes |
| Product Width | 2.0 in (50.8mm) |
| Connector Type | Open Ends |
| Product Length | 2.8 in (71.9mm) |
| Product Weight | 4.5 oz (126.6 g) with wires |
