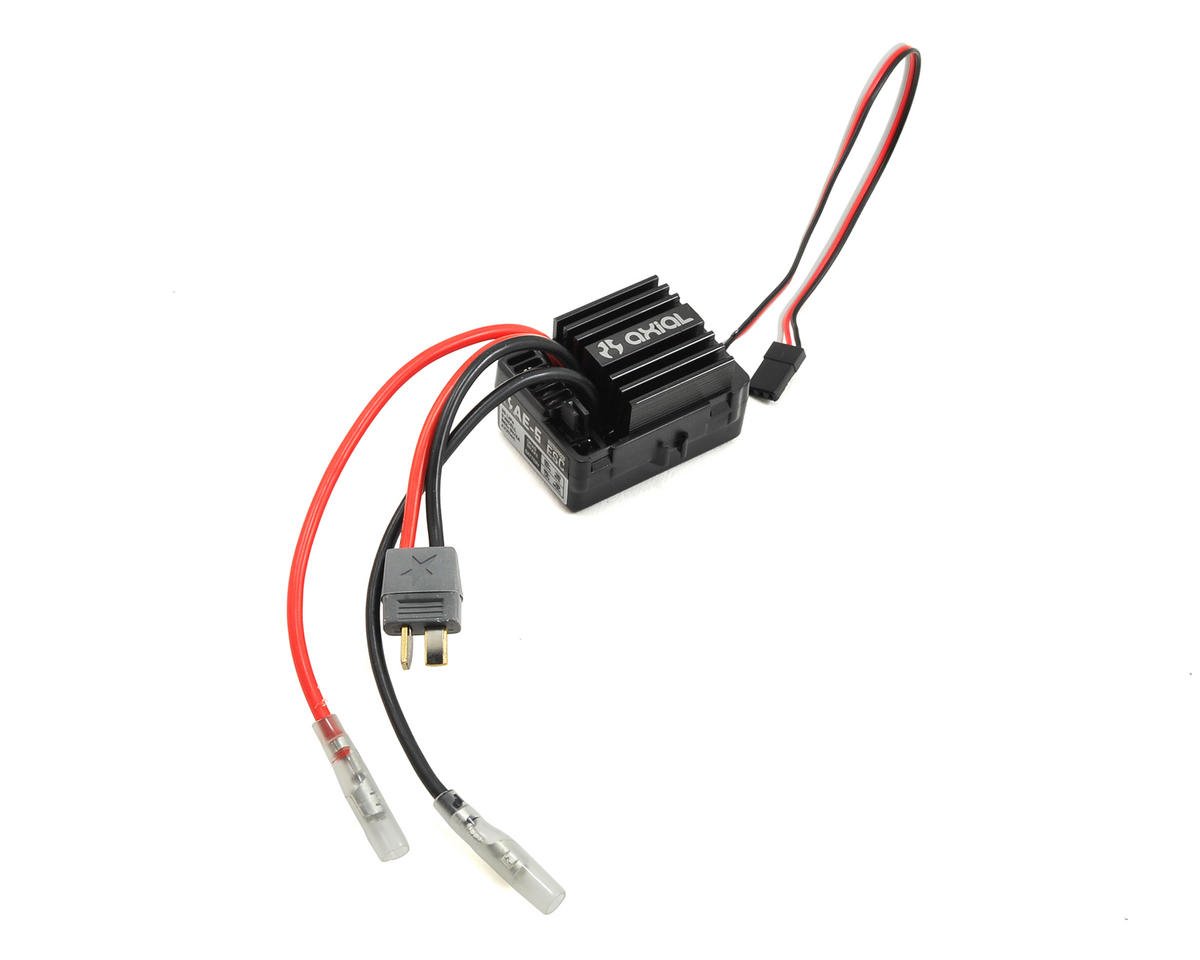

Axial AE-5 Waterproof ESC

Axial AE-5 Waterproof ESC
AXI31144

Regular price $ 44.99 Sale price $ 39.99 Save $ 5.00
/

The Axial AE-5 Waterproof ESC is a brushed motor workhorse for rock crawlers. With 3S LiPo capability, adjustable drag brake and waterproof functionality, this is a great ESC for scale enthusiasts and crawlers who demand the smooth control of a brushed motor system. Plus, the settings can be switched between LiPo and NiMH battery types “in the field” with a simple jumper, avoiding the complex procedures found on most crawler ESC options. ESC includes factory installed bullet connectors for the motor, and a T-style battery connector for plug and play versatility.

AE-5 Waterproof ESC Features:
  • Jumper 1 provides a simple plug and play choice between LiPo or NiMH batteries
  • Jumper 2 switches drag brake settings
  • Waterproof design with waterproof on/off switch
  • Includes T-style battery plug
  • Laser etched heat sink


Specifications:
Input Voltage: 2-3S LiPo, 5-9 Cell NiMH/NiCd
Size: 46.5x34x28.5mm
Weight: 70g
Motor Limit: 12T 2S / 18T 3S
On-Resistance FET: .002
Rated/Peak Current: 180A
Braking Current: 90A
BEC Voltage: 5.0V 2A Peak
PWM Frequency: 1KHz

Compatibility:

  • Axial AX10
  • Axial RR10 Bomber
  • Axial SCX10
  • Axial SMT10
  • Axial Wraith
