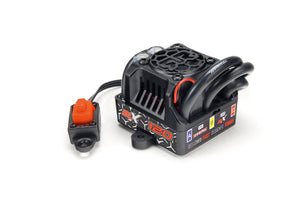

The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.
FEATURES:
Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
| Battery usage |
3S LiPo (11.1V) or 4S LiPo (14.8V) |
| Low Voltage Cut-Off (LVC) |
3.4V per cell |
| Thermal Protection Temperature |
125°C / 257°F |
| Over-Voltage Protection |
Over 17.2V |
| BEC Voltage |
6V |
| BEC Current |
3A |
| ESC Length |
43mm / 1.69" |
| ESC Height |
34mm / 1.34" |
| ESC Width |
54.5mm / 2.15" (Including hold-down tabs) |
| ESC Weight |
150g / 5.3 oz |
| Receiver Wire Length |
170mm / 6.70" |
| Battery Wire Length |
225mm / 8.86"
|
| Motor Wire Length (Including Connector) |
200mm / 7.87" |
| Switch Length |
21mm / 0.83" |
| Switch Width |
13.3mm / 0.52" |
| Switch Height |
16mm / 0.63" |
| Motor Bullet Connector Size |
4mm / 0.16" |
| Wire Specifications |
12AWG |
| ESC Battery Connector Type |
2xEC5 |
INCLUDES:
1 x BLX120 Brushless 4S ESC
1 x Loop Connector
