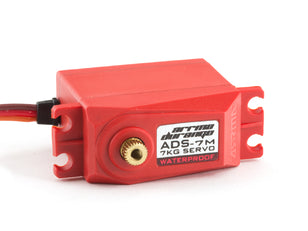

The ADS-7M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – Metal
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size
Wire length: 300mm
Torque – ADS-7M: 7kg/cm (97oz/inch) at 7.2V
Speed – 0.14 sec/0.12 sec 6V/7.2V
Signal – Analogue
| Application |
Cars, Trucks |
| Spline Count |
25 - Tooth |
| Water-Resistant |
Yes |
| Servo Operating Voltage |
6.0V |
| Maximum Servo Torque |
97oz/in @ 7.2V |
| Bearing |
Dual Ball Bearing |
| Bushing Or Bearing |
Bearing |
| Gear Type |
Metal |
| Programmable |
No |
| Servo Size Category |
Standard |
| Connector Type |
Universal |
| Maximum Servo Speed |
0.14 sec/60 deg @ 6.0V, 0.12 sec/60 deg @ 7.2V |
| Product Length |
1.57" (40 mm) |
| Input Voltage |
6.0V ~ 7.2V |
| Product Height |
1.49" (38 mm) |
| Servo Type |
Analog |
| Connector Wire Length |
11.81" (300 mm) |
| Product Width |
0.78" (20 mm) |
