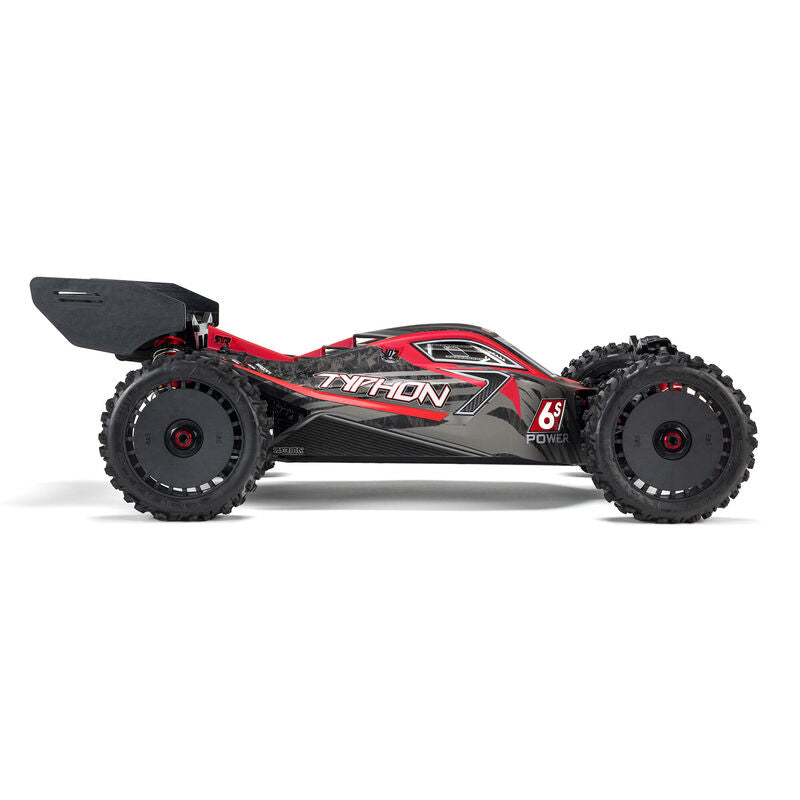

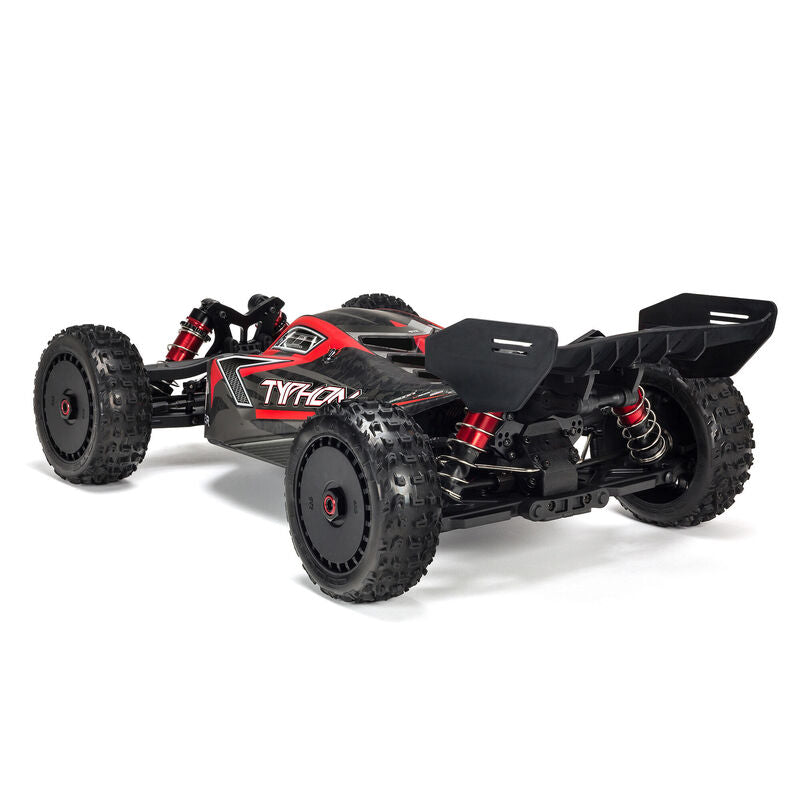

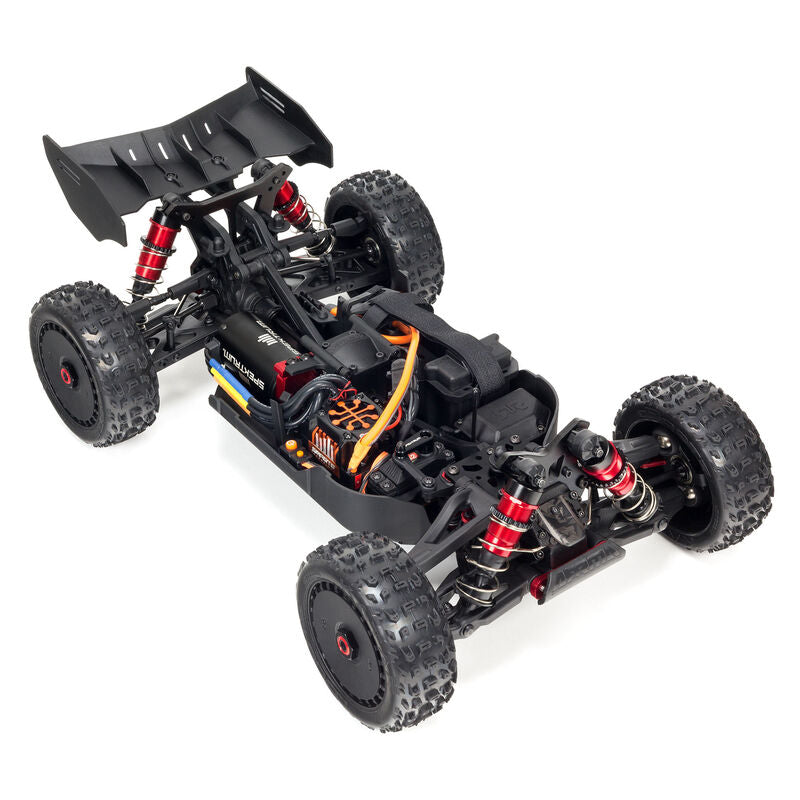

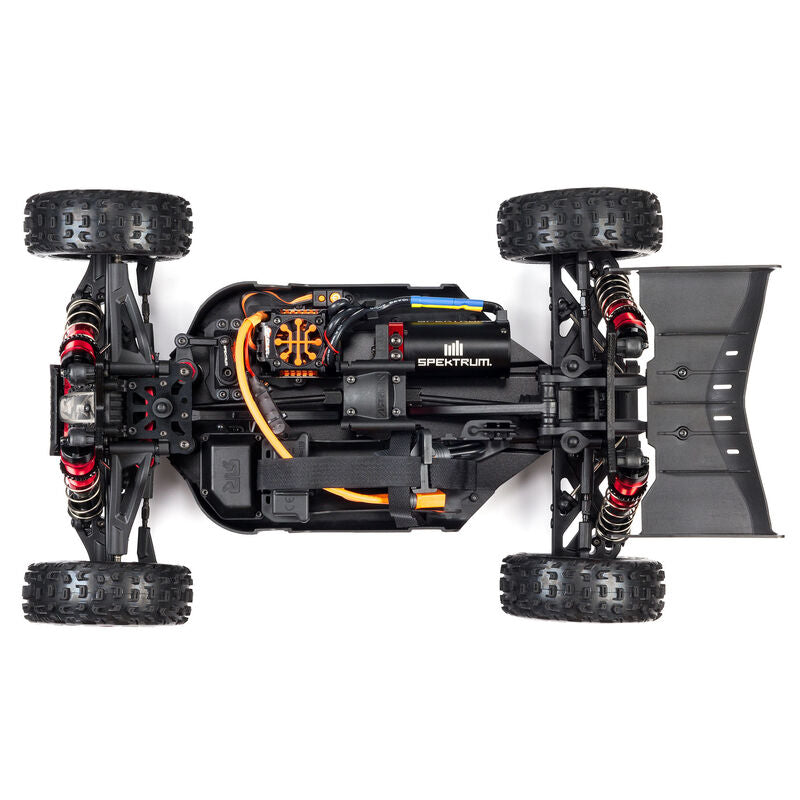

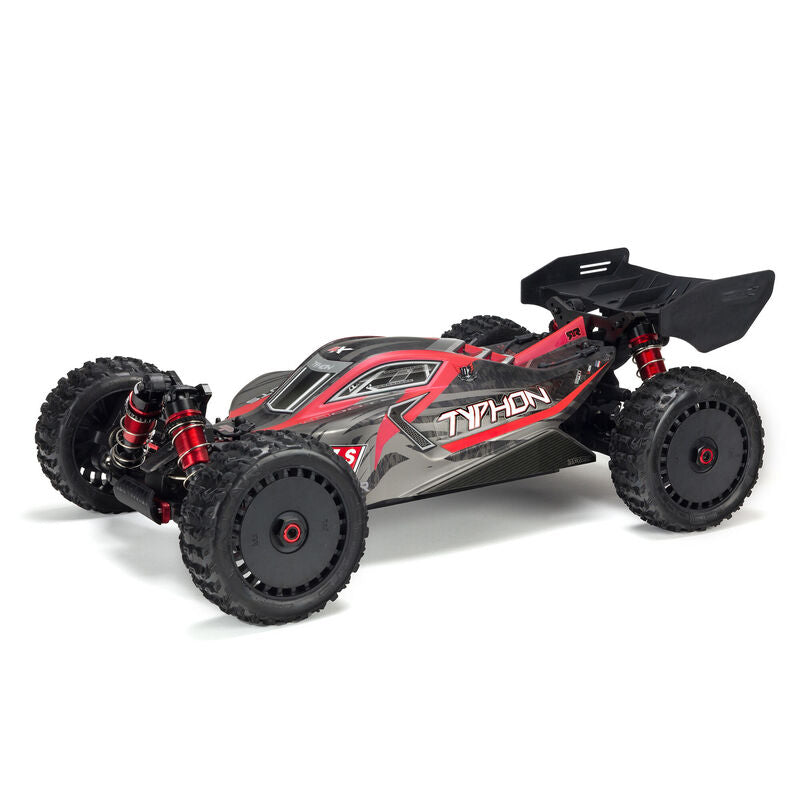

Arrma 1/8 TYPHON 6S V5 4WD BLX Buggy with Spektrum Firma RTR

ArrmaSKU: ARA8606V5
1 review

Color: Black Red
Price:
Sale price$ 499.99
Stock:
Only 3 units left

Pickup available at Chantilly Store

Usually ready in 1 hour

A Note about this item:

Description



Designed fast and designed tough, the ARRMA® TYPHON™ 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills — with a Spektrum™ SLT3™ radio, dual protocol receiver, Smart ESC, stronger servo and more.

Key Features
  • Updated with Spektrum™ components and Smart compatible
  • 70+ MPH (113km/h) speeds achievable in optimum conditions using a 6S LiPo battery and optional pinion gear, not included
  • EXB compatible front brace
  • Large volume waterproof receiver box
  • Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
In The Box
  • (1) ARRMA® TYPHON™ 6S BLX 1/8 Speed Buggy 4WD RTR
  • (1) Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
  • (1) Spektrum ™ S652 Metal-Geared Digital Servo (installed)
  • (1) Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
  • (1) Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
  • (1) Product Manual
  • (1) Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor
Needed to Complete
  • (1) 4S or 6S LiPo Battery
  • (1) Compatible LiPo Charger
  • (1) LiPo Charging Bag
  • (4) AA Batteries

Introduction

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum 3-channel radio system and Firma brushless electronics, it's all set for fast action on all terrain, in all conditions.

Features

  • Ready-to-run
  • Spektrum SLT3 2.4GHz 3-Channel Radio
  • Spektrum SR315 Dual Protocol 3-Channel Receiver
  • Spektrum S652 Digital Servo
  • Spektrum Firma 150A Smart ESC
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • EXB compatible front brace
  • Stronger chassis design
  • Large volume waterproof* receiver box
  • +1mm wheel hexes
  • Anodized aluminum chassis
  • Strong composite chassis side pods
  • Strong front and rear composite chassis brace
  • High-speed low downforce wing and strong mounts
  • Oil-filled adjustable shocks
  • Aluminum shock caps and protectors
  • Black-anodized aluminum front and rear shock towers
  • Durable steel driveshafts throughout
  • Heavy-duty drivetrain
  • All-metal diff outdrives and gearbox internals
  • Never-loose red aluminum servo saver
  • Never-pop ball ends
  • 4-Bolt center diff removal
  • Easy-access sliding motor mount for quick motor removal
  • Super-durable wheel hubs for increased strength
  • Low drag wheels
  • Multi-terrain dBoots® KATAR tires
  • Forged composite style matte paint scheme
  • IC5® connectors (EC5 compatible)
  • 2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manual



Overview

ARRMA® engineers have updated the TYPHON 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3 is compatible with Tactic® SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR® protocols, you can easily upgrade to a Spektrum DSMR® transmitter later — then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

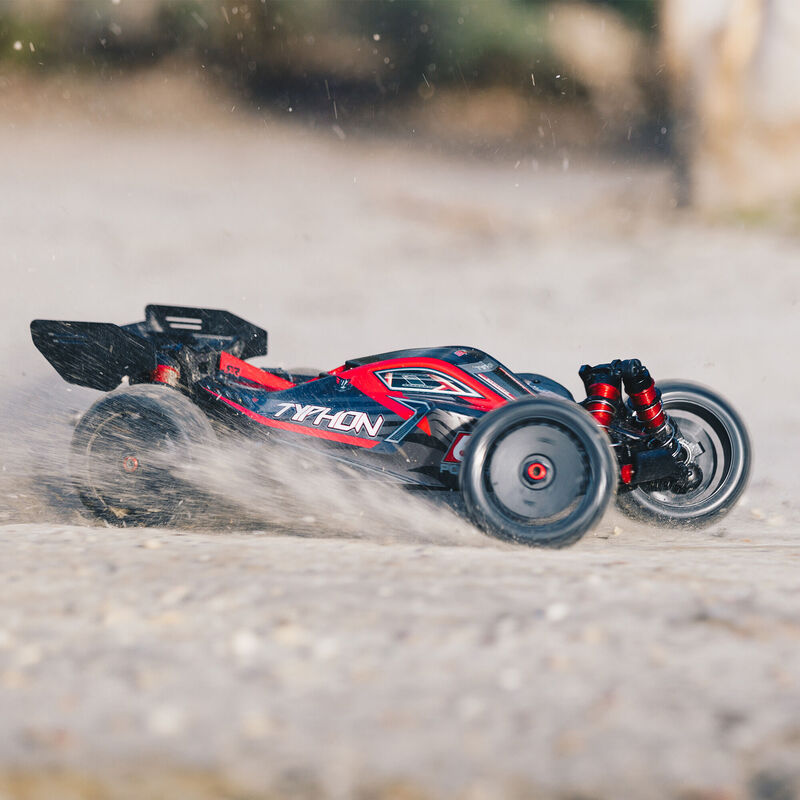

The TYPHON 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.

Video Overview

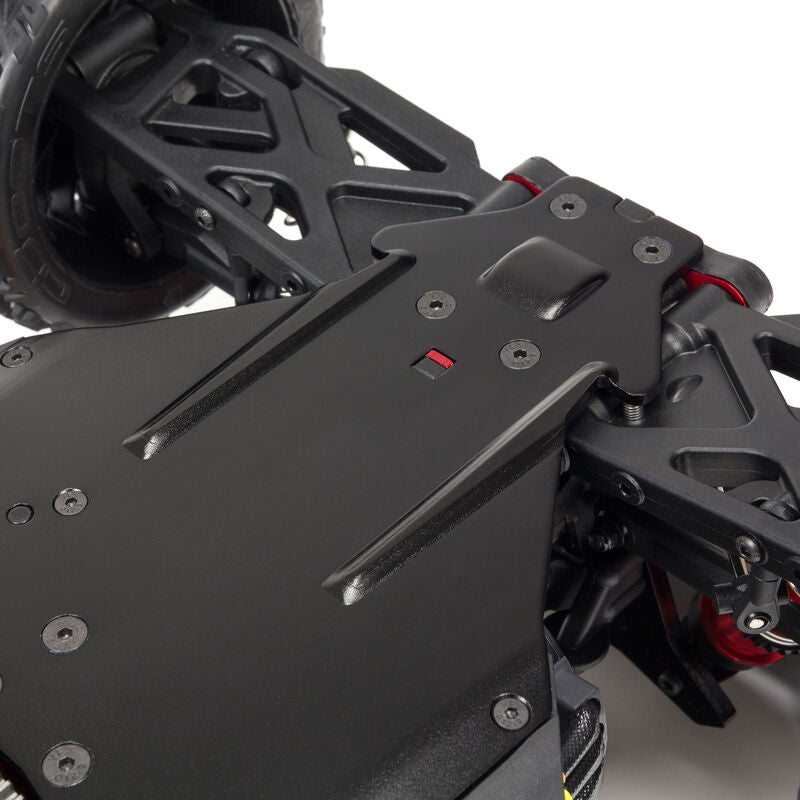

UPDATED CHASSIS DESIGN
UPDATED CHASSIS DESIGN

Wider rear section and 3D form introduced in key areas to greatly improve strength.



SAFE-D FIRST
SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

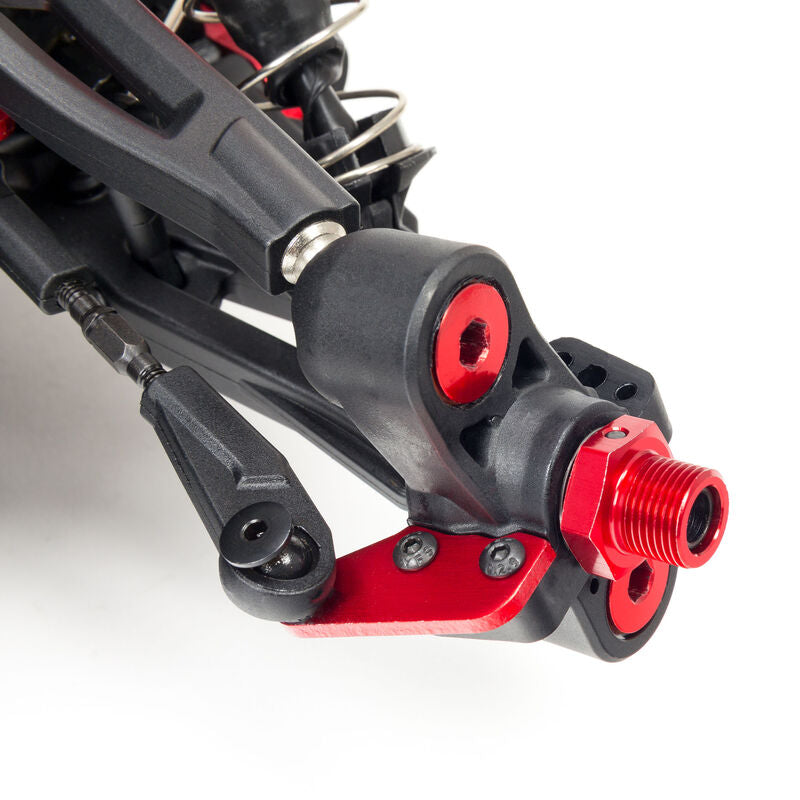

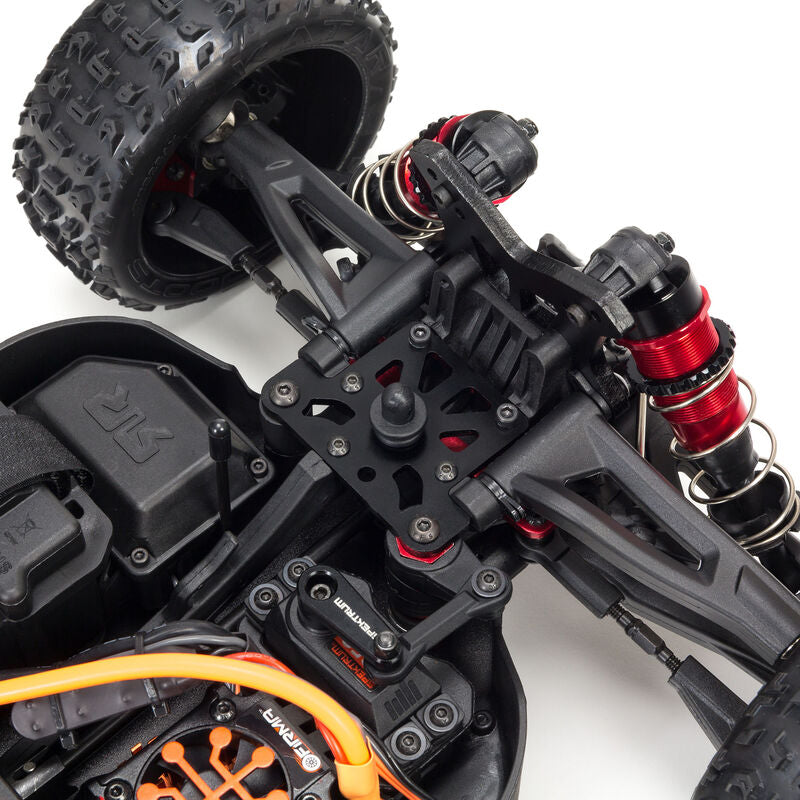

FRONT PIVOT BALL SUSPENSION
FRONT PIVOT BALL SUSPENSION

For precise handling at top speeds



QUICK MAINTENANCE
QUICK MAINTENANCE

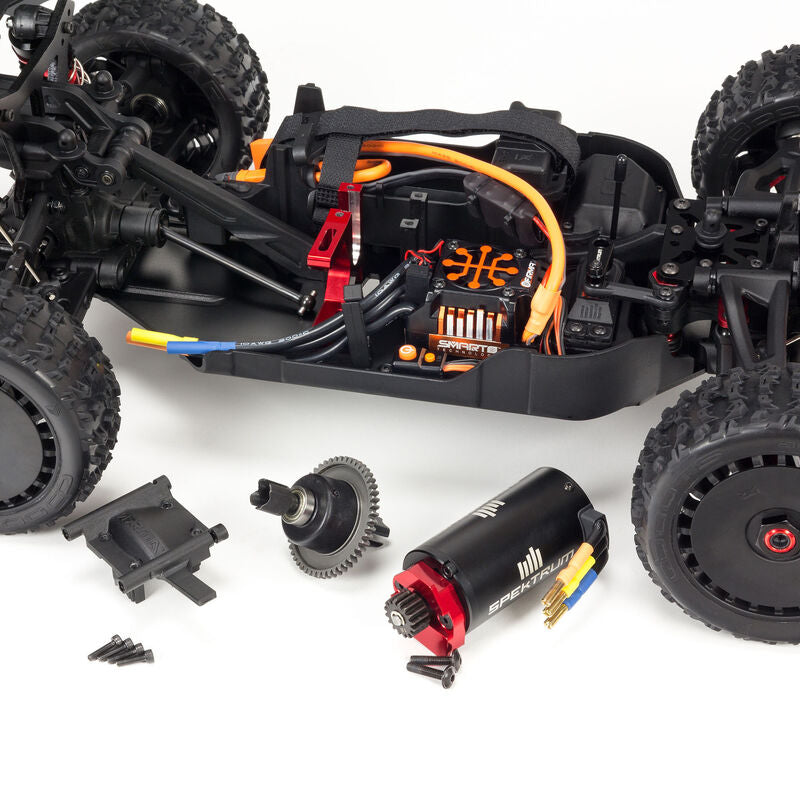

4 bolt center diff removal for easy access



SPEKTRUM<sup>®</sup> SMART TECHNOLOGY INCLUDED
SPEKTRUM® SMART TECHNOLOGY INCLUDED

FIRMA 150A SMART Brushless ESC and FIRMA 4074 2050Kv Brushless Motor



GO LARGE
GO LARGE

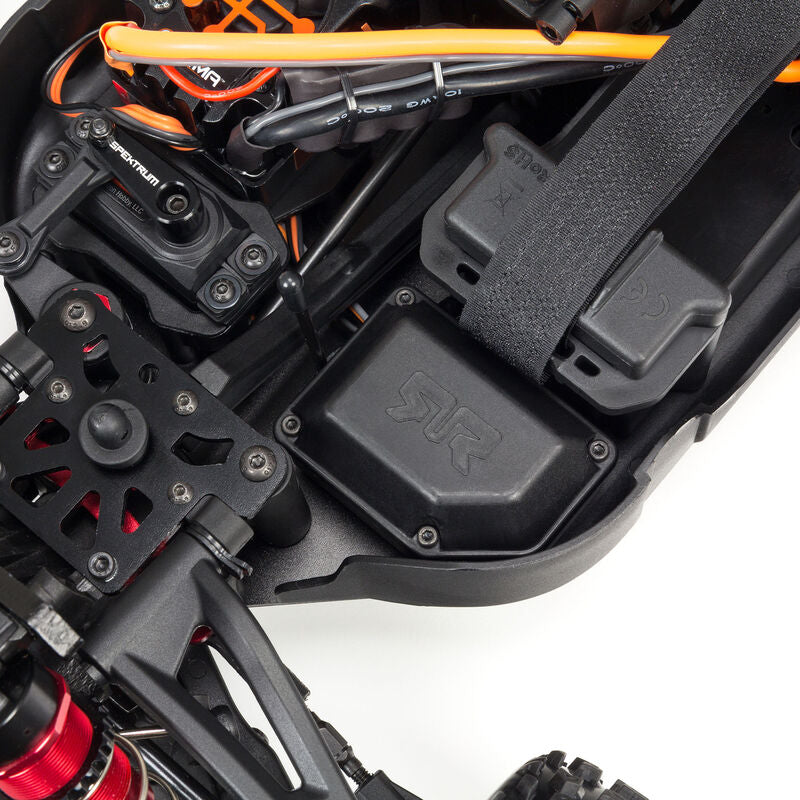

Large volume waterproof receiver box



RUBBER SHIELDED BEARINGS
RUBBER SHIELDED BEARINGS

Longer life, less maintenance



OPTIONAL SPEED PINION INCLUDED
OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

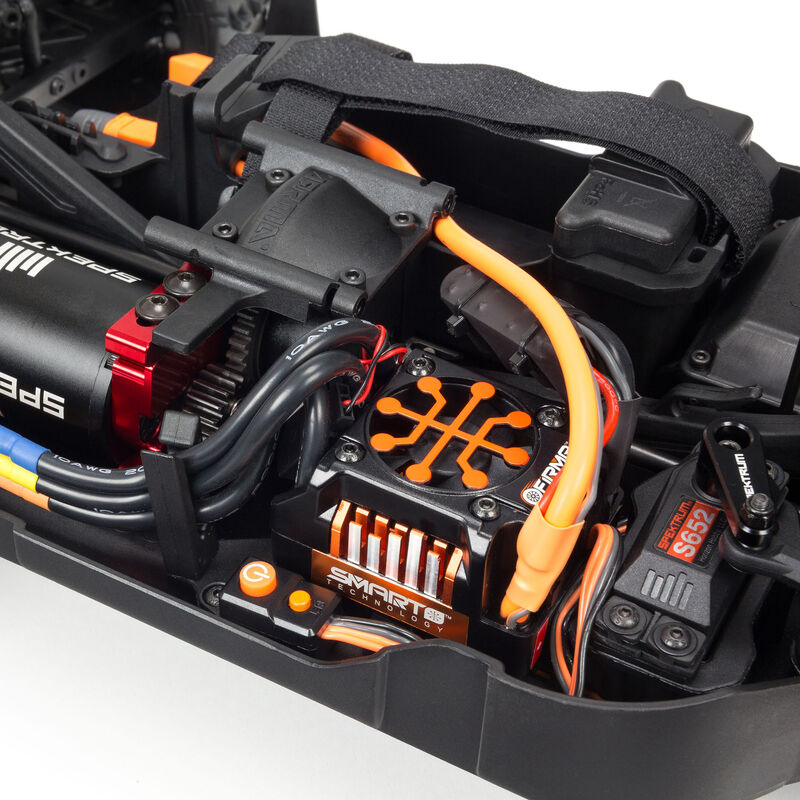

FIRMA 150A SMART Brushless ESC
FIRMA 150A SMART Brushless ESC
  • Waterproof* and dustproof design
  • 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
  • Spektrum® SMART Technology
  • Fitted with reliable IC5® connectors (EC5 compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch, brake, BEC, reverse speed and motor timing settings
*For details on waterproof standards, please refer to the product instruction manual

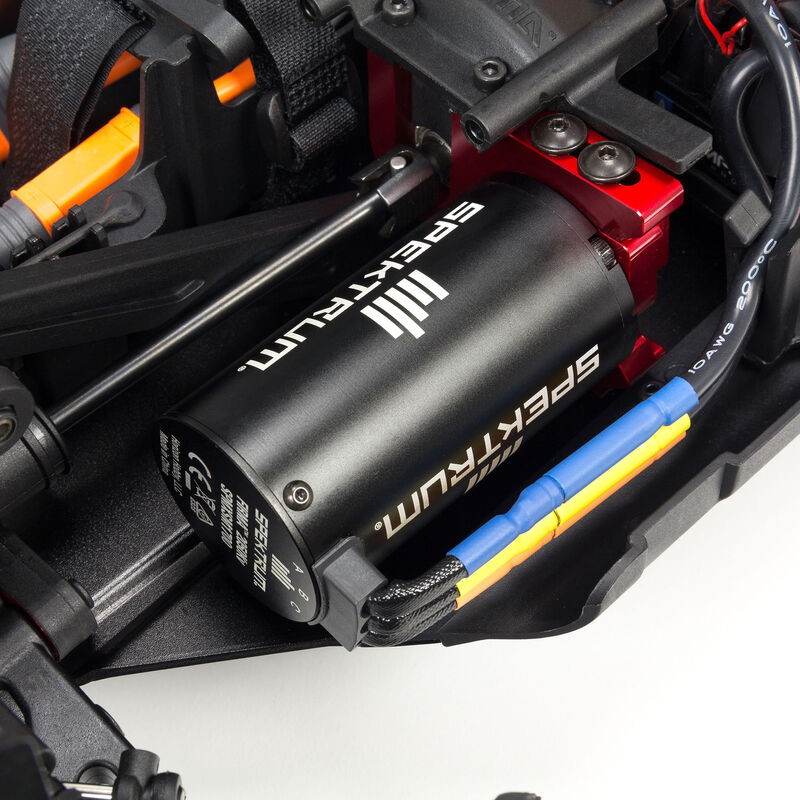

FIRMA 4074 2050Kv Brushless Motor
FIRMA 4074 2050Kv Brushless Motor
  • 2050Kv 4074 size 6S brushless motor
  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • 4mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminum motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

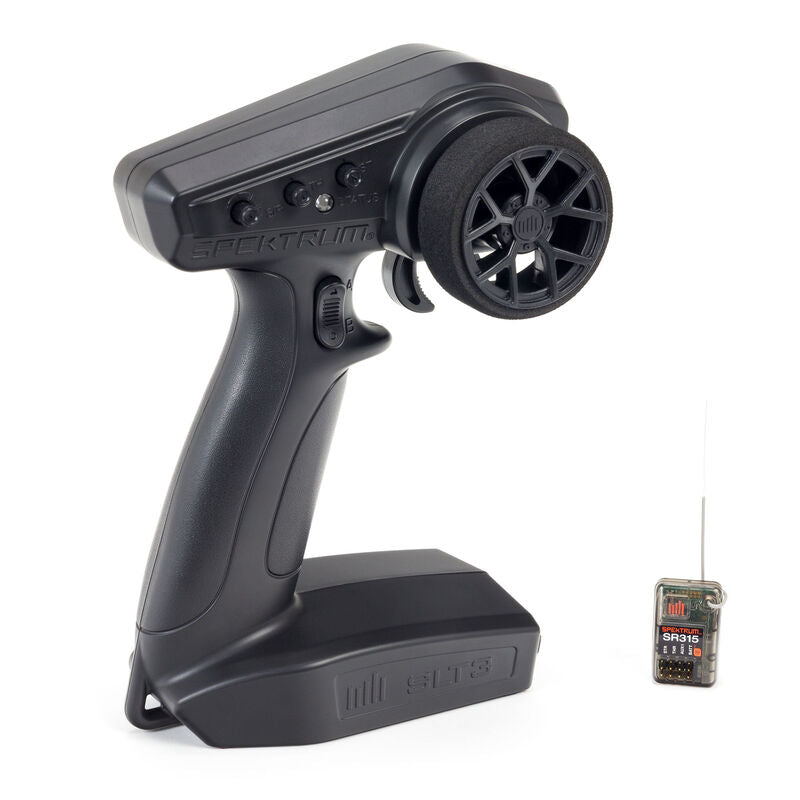

SPEKTRUM SLT3 RADIO
SPEKTRUM® SLT3® RADIO
  • Superb SLT response rate
  • 50% and 75% throttle limited switch - great for beginners
  • Steering & throttle rate & trim adjustments with throttle and steering reversing
  • Foam steering wheel grip
  • Compatible with Tactic Receivers



SPEKTRUM SR315 RECEIVER
SPEKTRUM® SR315 RECEIVER
  • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
  • Fast reponse rate and outstanding range
  • No tool binding and protocol switching
  • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
  • 3-Channels




SPEKTRUM SPMS652 DIGITAL SERVO
SPEKTRUM® SPMS652 DIGITAL SERVO
  • All Steel Gears
  • Waterproof*
  • 19.08kg-cm/265oz-in Torque @7.4V
  • 32% More Torque & 5% Faster than ADS-15M Servo
*For details on waterproof standards, please refer to the product instruction manual

Product Specifications



Approximate Assembly Time No assembly required
Ball Bearings Full set
Battery Sold Separately
Body Painted, decaled and trimmed
Brakes User programmable
Charger Sold Separately
Chassis 0.12" (3mm) 6061-T6 aluminum
Completion Level Ready-To-Run
Differential Three, gear type
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Final Drive Ratio 10.31
Front Shock Spring Rate 75.5gf/mm
Front Track 12.2" (310mm)
Power Type Electric
Gear Pitch 1.0MOD
Internal Gear Ratio 3.3
Motor Size 4074
Motor Type Brushless
Pinion 16T
Product Height 7.48" (190 mm)
Product Length 20.08" (510 mm)
Product Weight 7.52lbs (3.42kg)
Product Width 12.22" (310 mm)
Radio Included
Rear Shock Spring Rate 56.6gf/mm
Rear Track 12.2" (310mm)
Scale 1/8
Search Keywords ARRMA Firma RTR
Servos Included
Shock Type Aluminum body oil-filled adjustable
Speed 70+
Speed Control Included
Spur Gear 50T
Suspension Independent
Tire Tread dBoots KATAR B
Tire Type Multi-surface
Vehicle Type Buggy
Water-Resistant Yes
Wheelbase 12.91" (328mm)
Wheel Type 1/8 scale Buggy
Wheel Width 1.7" (44mm)
