This Firma 160A Black Edition Smart ESC deliver power and intelligence all-in-one, no additional modules or links required. This waterproof, 160A brushless ESC drives your vehicle through almost any conditions imaginable, with explosive acceleration and ultra-smooth performance.
- Black Edition Case
- Enhanced electronic design and hardware for improve reliability
- Expanded programmable options
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
Firma 160A Brushless Smart ESC V2, 3S - 8S: Dual IC5 Features
- Enhanced electronic design and hardware for improve reliability
- Black Edition Case
- Expanded programmable options (see manuals and support for more information)
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor

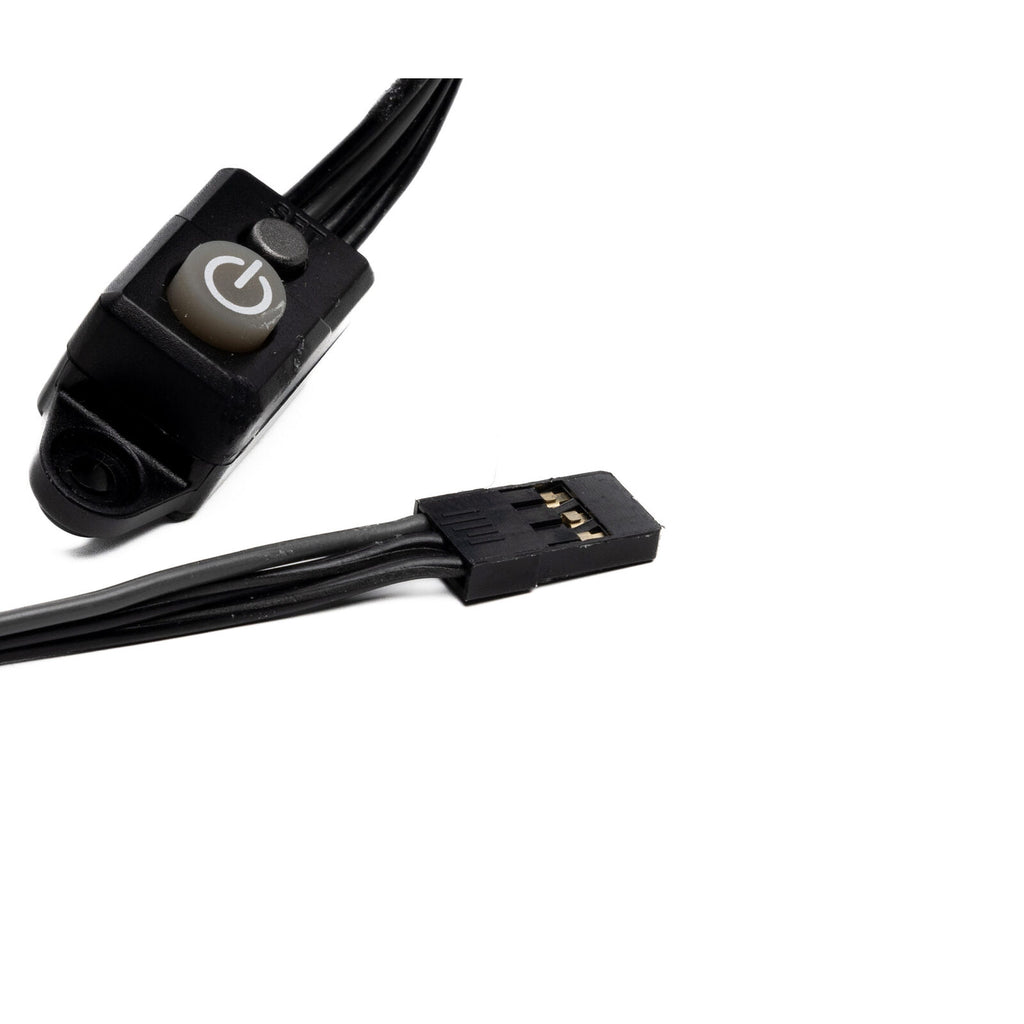

- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Waterproof
- Multiple options for easy programming:
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install - no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
ONE-WIRE TELEMETRY
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.
SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!
MULTIPLE PROGRAMMING OPTIONS
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

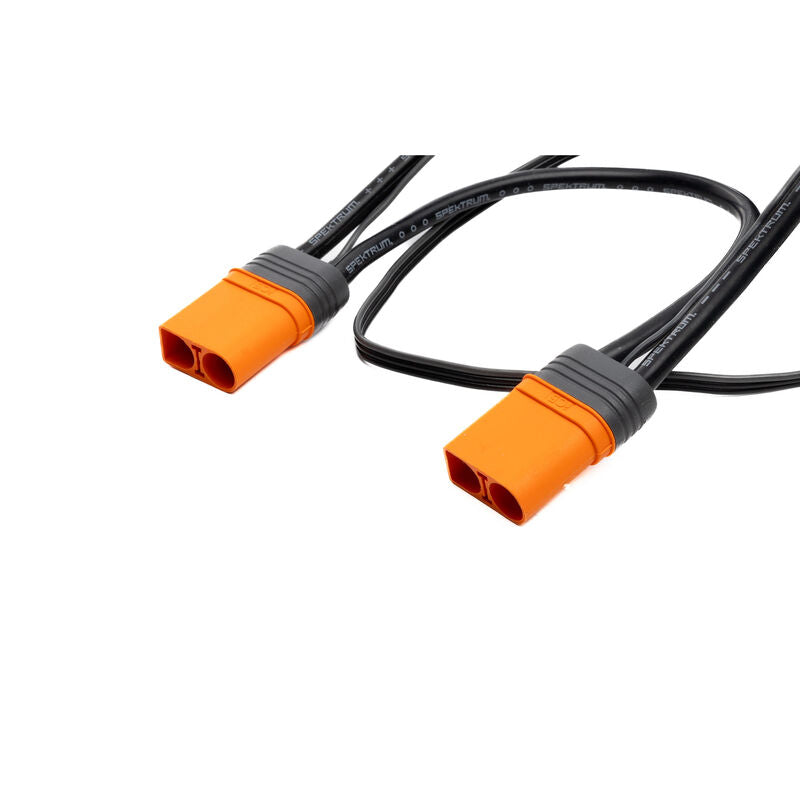

EC3™/EC5™ BACKWARDS COMPATIBLE
Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.
| Product Details | |
|---|---|
| In The Box | |
| Spektrum™ Firma™ Smart ESC | 1 |
| Spektrum Smart Sticker Sheet | 1 |
| Firma 160 Amp Brushless Smart ESC Product Manual | 1 |
| Product Specs | |
|---|---|
| Auto Cutoff | Yes |
| Battery Input Lead | 10AWG Dual IC5 (EC5 Compatible) |
| BEC | Yes |
| BEC Continuous Current | 8A |
| BEC Type | Switch Mode |
| BEC Voltage | 6V or 8.4V (User Selectable) |
| Brakes | Yes |
| Connector Type | IC5 |
| Forward | Yes |
| Input Voltage | 3S – 8S LiPo |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 1050A |
| Maximum Continuous Current | 160A |
| Motor Output Lead | 6.5mm Female Bullets |
| Overload Protection | Yes |
| Product Height | 1.8" (46 mm) |
| Product Length | 2.7" (69 mm) |
| Product Weight | 9.9oz (280g) |
| Product Width | 3.03" (77 mm) |
| Programmable | Yes |
| Reverse | Yes |
| Technology | Smart |
| Water-Resistant | Yes |
Compatibility:
