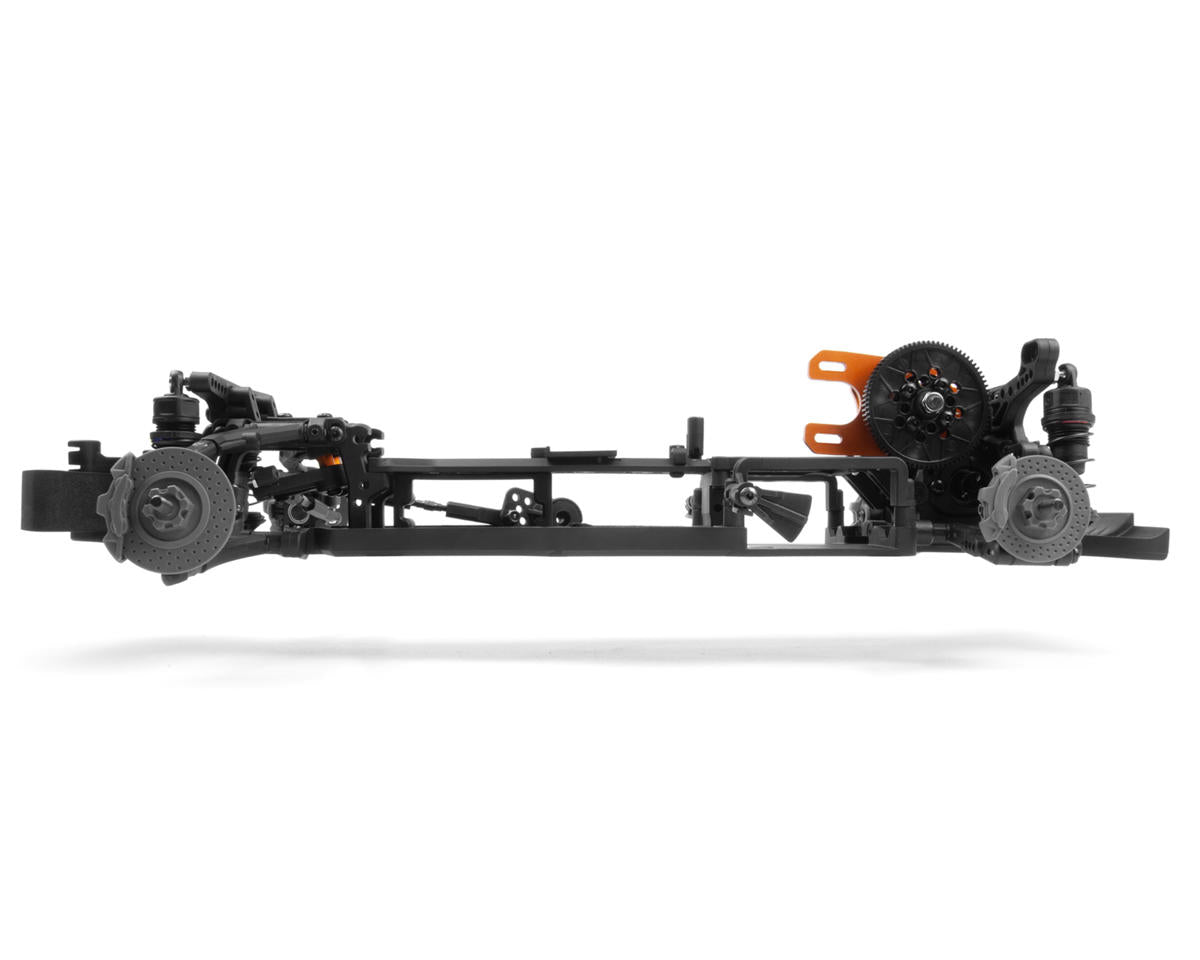

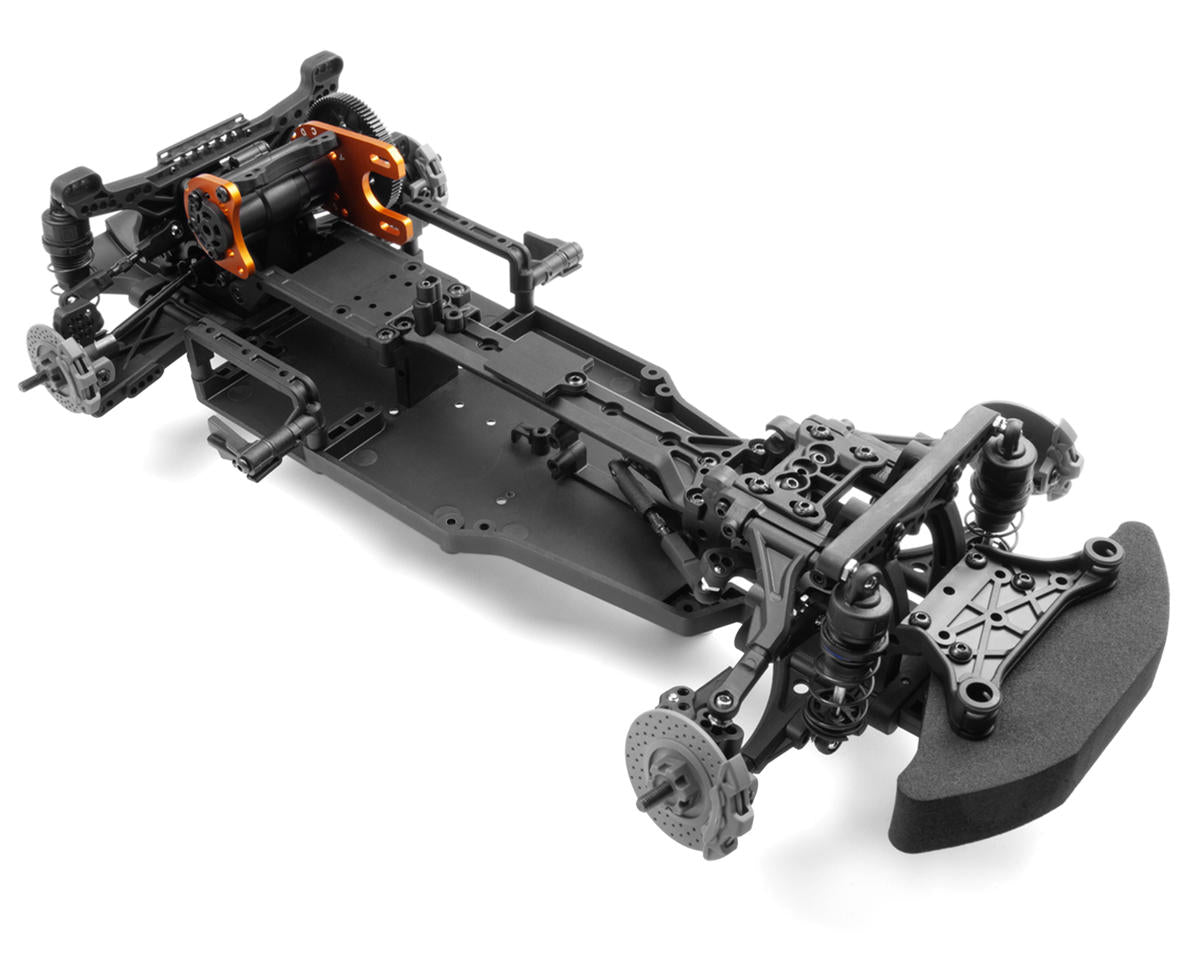

HPI Stage-D10 Creator Edition 1/10 2WD RWD Drift Car Roller Chassis
Build the drift car you've always wanted — on your terms, your style, your electronics. The HPI Stage-D10 Creator Edition arrives as a fully assembled 1/10 RWD roller chassis that serves as a blank canvas for any custom drift build you can imagine. Whether you're recreating a favorite street car, building a competition-inspired drifter, or putting together something completely unique, the Stage-D10 gives you a purpose-built 2WD drift platform with exceptional tuning depth and zero compromises baked in from the start.
The bespoke Stage-D10 2WD platform is engineered specifically for drift performance and precision setup work. Over 200 rear gearbox configurations give you an extraordinary range of drivetrain tuning options, while the adjustable 246–264mm wheelbase accommodates a wide variety of 1/10 TC and drift bodies for maximum body compatibility. Suspension geometry adjustments are extensive — adjustable Ackermann, camber, toe, roll centers, and camber gain settings let you dial in front-end behavior for any driving style or track condition. Multiple battery and servo positions, adjustable wheel hex spacing, gyro mounting provisions, shock piston options, and motor direction switching round out a tuning package that serious drift builders will immediately appreciate. The sealed geared rear differential and oil-filled threaded coil-over shocks provide a reliable, consistent mechanical foundation to build on. Add your choice of transmitter, ESC, motor, gyro, servo, battery, body, wheels, and tires to complete your vision.
Features:
Chassis & Platform
- Purpose-built Stage-D10 bespoke 1/10 2WD RWD drift platform
- Fully assembled roller chassis — ready for your electronics and body
- Length 18.11" (460mm) with adjustable 246–264mm wheelbase
- Sealed geared rear differential
- Oil-filled threaded coil-over shocks
Tuning & Adjustability
- Over 200 rear gearbox configurations
- Adjustable Ackermann geometry
- Adjustable camber, toe, roll centers, and camber gain
- Multiple battery mounting positions
- Multiple servo mounting positions
- Adjustable wheel hex spacing
- Gyro mounting provisions
- Adjustable shock pistons
- Reversible motor direction
Build Flexibility
- Compatible with 1/10 TC and drift bodies
- Accepts 540 or 380 size motors
- XT-60 battery connector
- True blank-canvas platform — choose your own body, wheels, tires, and electronics
Specifications:
| Specification |
Detail |
| Scale |
1:10 |
| Drive |
2WD |
| Power Source |
2S LiPo |
| Length |
18.11" (460mm) |
| Wheelbase |
10.04" (255mm) — adjustable 246–264mm |
| Front Width |
7.87" (200mm) |
| Rear Width |
7.87" (200mm) |
| Height |
4.72" (120mm) |
| Assembly Level |
Roller Chassis |
In the Box:
| Qty |
Item |
| 1 |
HPI Stage-D10 1/10 2WD Drift Car Roller Chassis (Fully Assembled) |
| — |
Product Manual |
Needed to Complete:
| Qty |
Item |
| 1 |
2.4GHz Transmitter & Receiver |
| 1 |
Electronic Speed Control (ESC) |
| 1 |
540 or 380 Size Motor |
| 1 |
Drift Gyro |
| 1 |
Fast Steering Servo |
| 1 |
2S LiPo or 6-Cell NiMH Battery Pack with XT-60 Connector |
| 1 |
Compatible Battery Charger |
| 4 |
AA Batteries for Transmitter |
| 1 |
1/10 TC or Drift Body |
| 4 |
Drift Tires & Wheels |
| — |
Assembly Tools & Paint |
Note: The Stage-D10 Creator Edition is a roller chassis — body, wheels, tires, and all electronics are not included and must be supplied by the builder. Please review the Needed to Complete list above for all required items.
