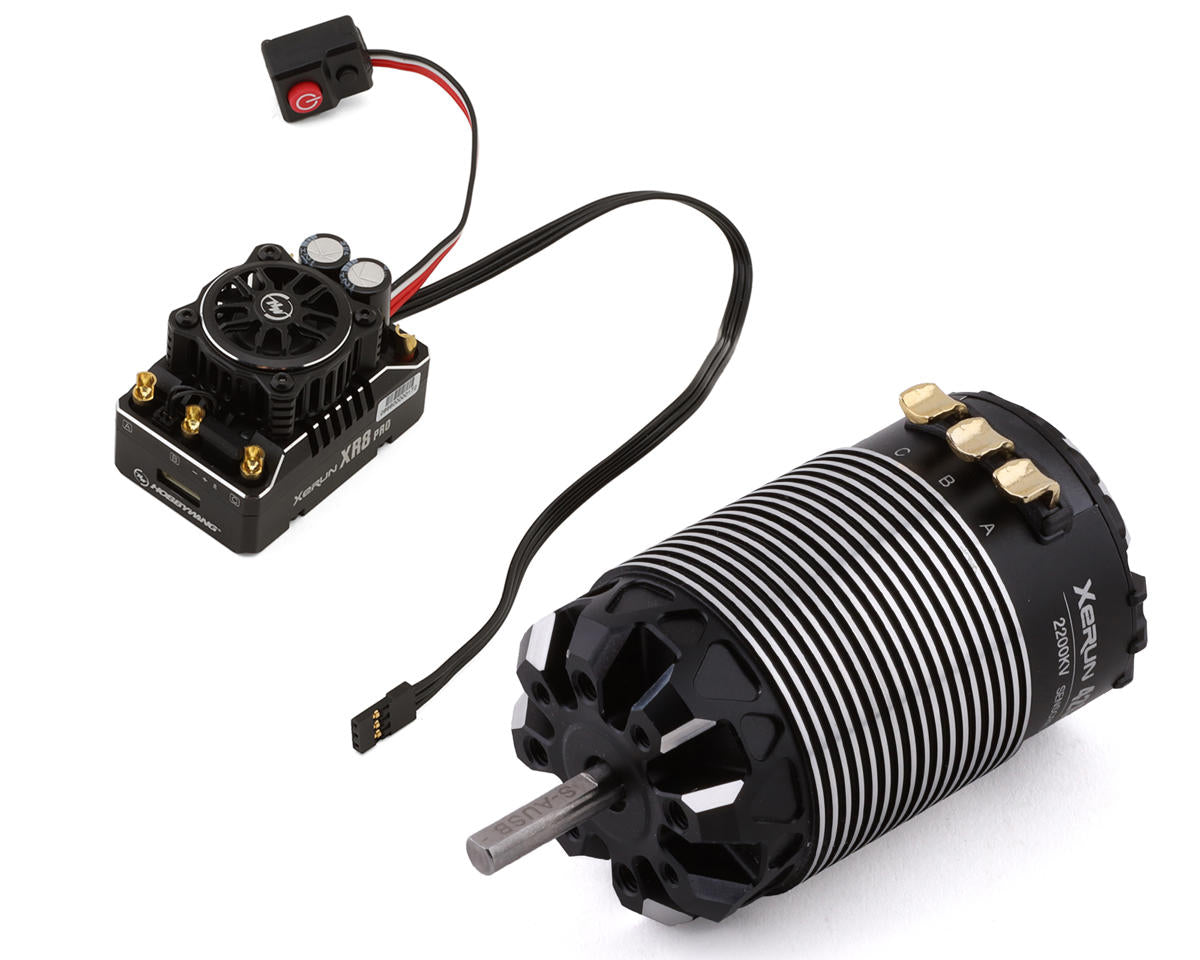

Xerun XR8 Pro G3 Sensored Brushless Combo

The Xerun XR8 Pro G3 Brushless ESC and motor combo is Loaded with cutting-edge technologies and features, this 1/8 competition combo is designed to provide a higher level of performance and reliability for all competitive racers looking for the ultimate smooth control and supreme power you'd come to expect from Hobbywing! For added protection, this ESC (Electric Speed Control) is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform the competition.


NOTE: Use appropriate settings provided by the factory or team drivers. Check the operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.

Features:

  • XR8 Pro G3
    • Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature
    • Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F
    • Dual brake mode
    • Advanced Turbo and Boost timing technology
    • Built-in reverse polarity protection circuit
    • Real-time data recording function, easy to obtain power running status
    • Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload
    • Superior dustproof protection

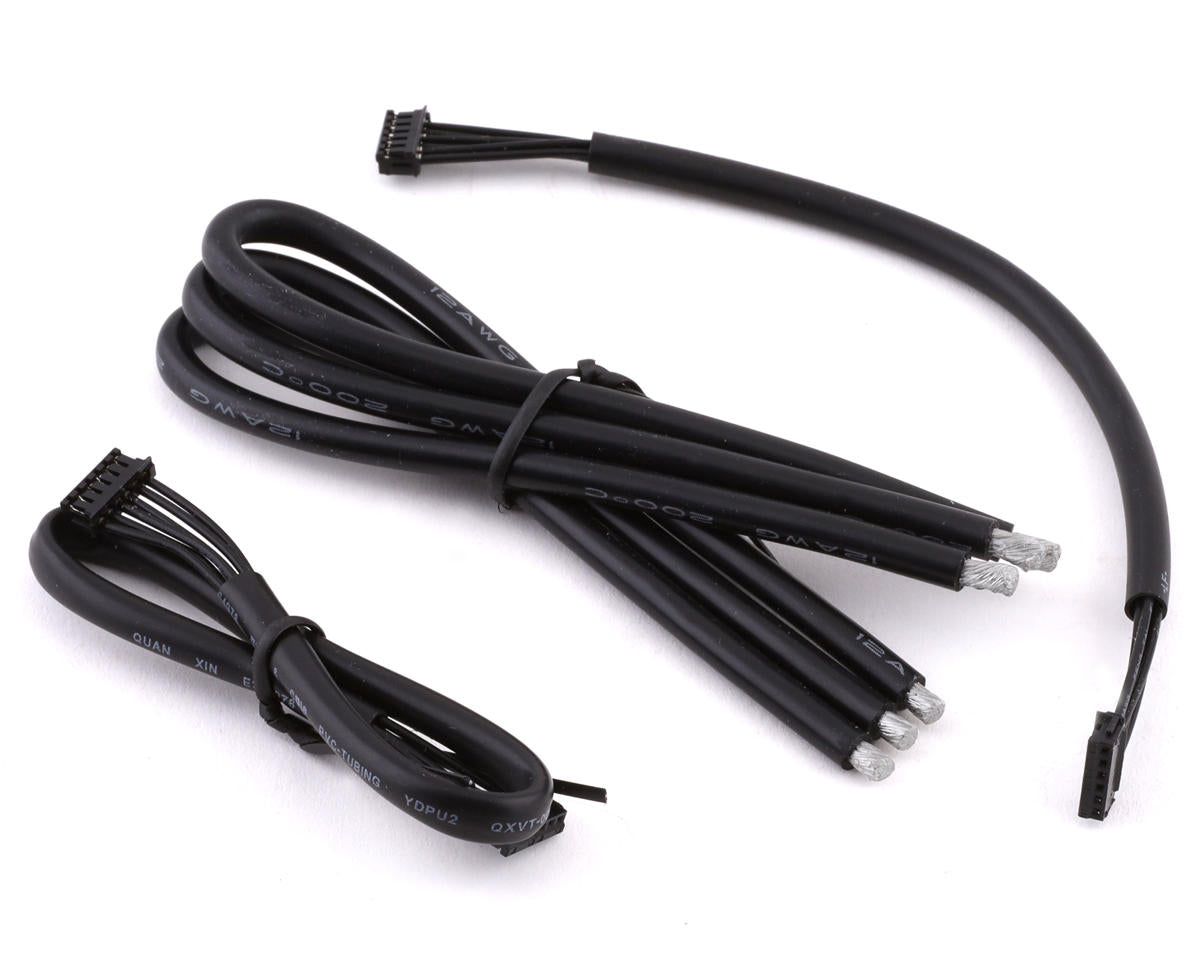

    • Custom ultra-soft 11AWG silicone wire
    • Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand, and other foreign objects
    • Intelligent fan with noise reduction and power saving functions
  • 4268SD G3 Motor
    • 2200Kv recommended for 1/8 off road
    • Turbo Timing Technology
    • Full Sensored mode (when paired with XR8 ESC)
    • Adjustable Timing (Bi-Directional)
    • Advanced Hall Sensor System
    • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
    • Guarantees users effective heat dissipation and dust prevention
    • Double insulated windings (240°C R-rated)
    • Outstanding performance and super durability

Specifications:

  • ESC:
  • Scale: 1/8
  • Type: Brushless Sensored
  • Input Voltage: 2-4S LiPo
  • BEC Output: 6V/7.4V Adjustable
    • Continuous: 200A
    • Peak: 1080A
  • Motor Limit: 3S Lipo: KV= 4000 3660 Size motor / 4S Lipo: KV= 3000 4268 Size motor
  • Braking mode: FOC/BLDC
  • Programmable: Yes, Via OTA Programmer or LCD G2 Program Box
  • Suitable applications: 1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck
  • Size(LxWxH): 54.8x38.8x36.8mm
  • Weight: 102.8g
  • Motor:
  • KV: 2200KV
  • Pole: 4
  • LiPo: 2S-6S
  • Resistance: 0.0069
  • Shaft Diameter: 5mm
  • No Load Current: 4.1A
  • Size (Diameter x Length): 42x68mm
  • Weight:  285g
  • Application: 1/8 Off Road

Includes:

  • (1) Xerun XR8 Pro G3 Sensored Brushless ESC
  • (1) Xerun 4268SD G3 Sensored Brushless Motor
