HWI30112619

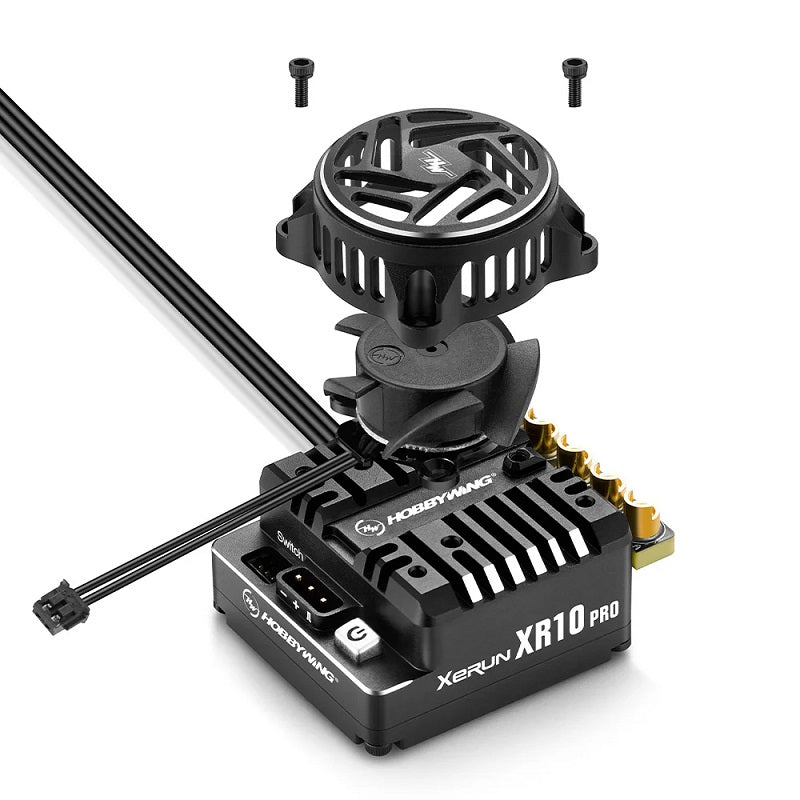

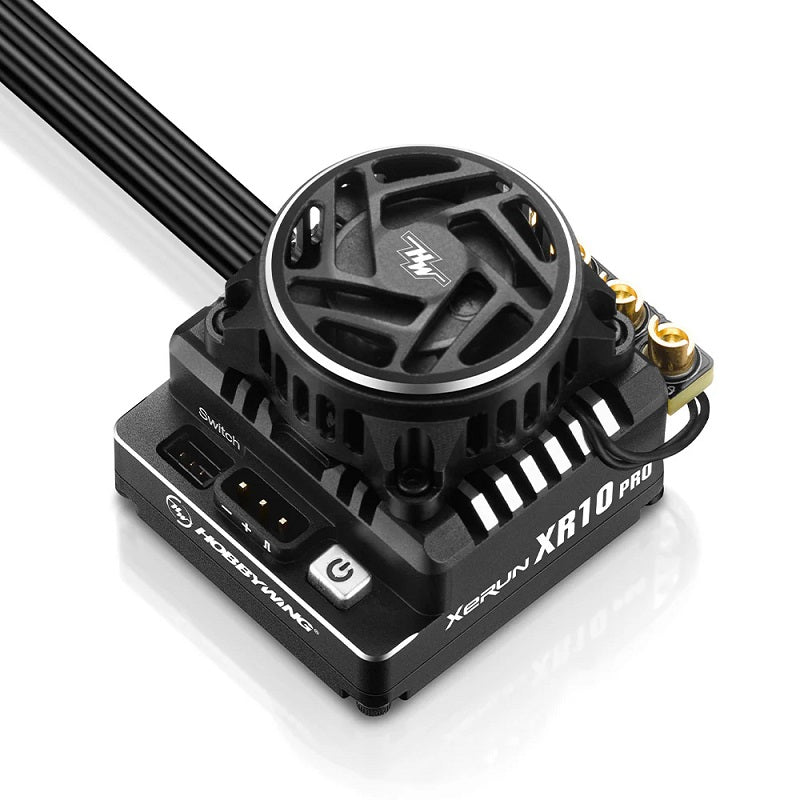

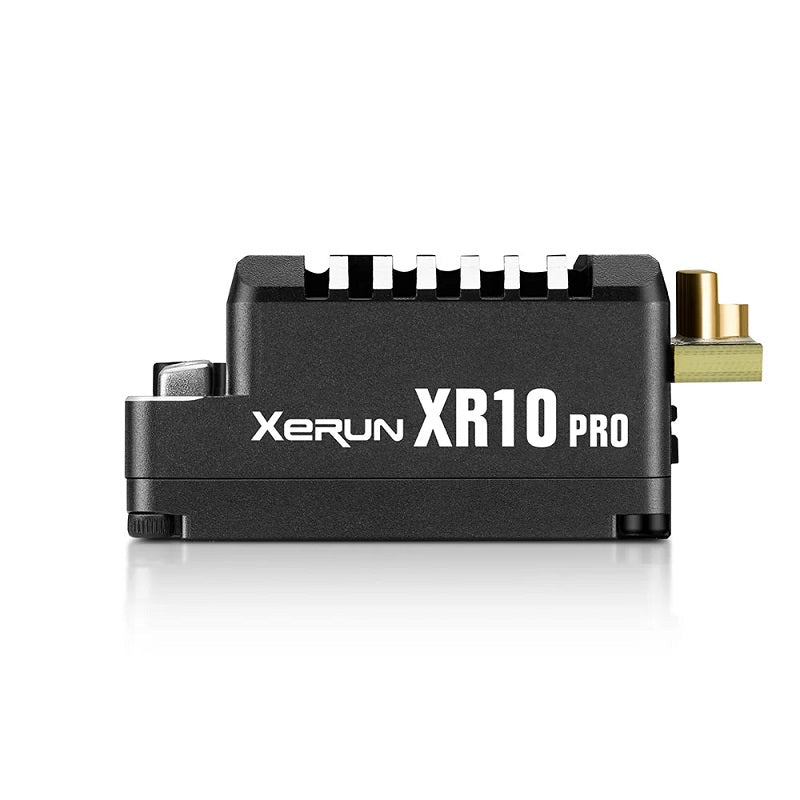

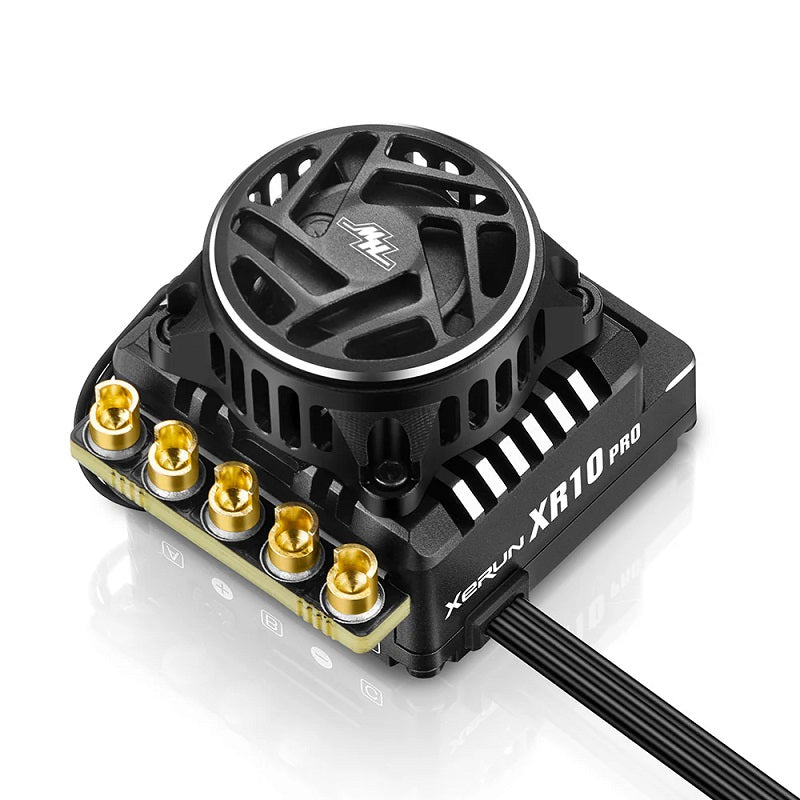

Hobbywing XR10 Pro G3 ESC
Engineered for 1/10th Modified Class Racing
The HOBBYWING XR10 PRO G3 ESC is designed specifically for competitive 1/10-scale modified racing, delivering precision control, optimized power, and unmatched responsiveness. With advanced tuning features, multiple profiles, and patented protection systems, this ESC gives racers a true edge on the track.
Key Features
-
Race-Ready Performance: Tailored for 1/10th Modified class racing with smooth, consistent power delivery.
-
Reverse Polarity Protection (RPP): Patented Hobbywing technology prevents ESC damage from incorrect wiring.
-
Customizable Profiles: Three selectable race profiles included — easily rename and save modes for different setups or track conditions (e.g. ROAR2025_MOD_4.5).
-
Flexible Installation: Internal electronic power switch for reliability; optional external switch supported (sold separately).
-
Advanced Connectivity: Separate programming port powers an external fan or connects to an LCD Program Box Pro or OTA Programmer.
-
Tunable Power & Braking: Variable frequency control for both PWM and brake frequencies enables precision adjustment of throttle and braking response.
-
Softening Function: Exclusive Hobbywing power-delivery tuning feature for improved driving efficiency.
-
Disc Brake Mode: Innovative design provides smoother, stronger braking control.
-
Comprehensive Protection:
-
Reverse Polarity Protection (RPP)
-
Low-Voltage Cutoff (LVC)
-
ESC & Motor Thermal Protection
-
Throttle Signal Loss Fail-Safe
-
Built-In Data Logging: Integrated module records performance data — easily viewable through the OTA Bluetooth module after use.
Specifications
| Specification |
Details |
| Continuous / Peak Current |
160A / 1200A |
| Motor Type |
Sensored / Sensorless Brushless Motors |
| Applications |
Touring Car ≤ 4.5T, Buggy ≤ 5.5T (3650 / 540 2-pole motors) |
| LiPo Cells |
2S LiPo |
| BEC Output |
5 – 7.4 V Adjustable, 5 A Continuous (Switch-mode) |
| Cooling Fan |
Powered by stable BEC voltage |
| Wire Gauge |
13 AWG Ultra-Flex Silicone Wires |
| Size |
35.0 × 33.6 × 30.3 mm (with fan & shroud) |
| Weight |
93 g (with wires) |
| Programming Port |
Independent Interface |
| Reverse Polarity Protection |
Yes |
| Recommended Motors |
Hobbywing V10 Brushless Motors (3.5T – 10.5T) |
