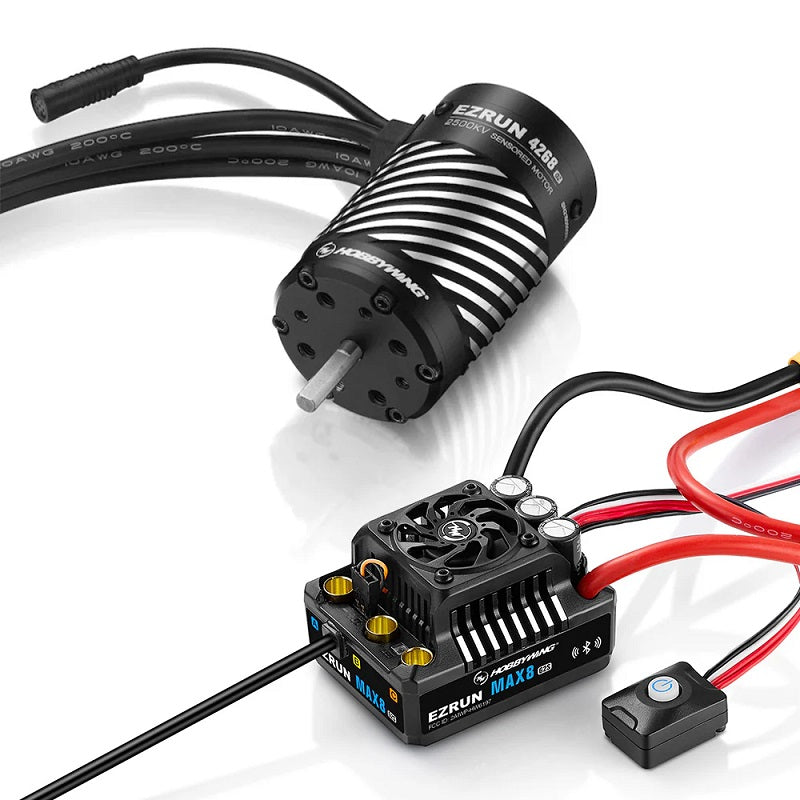

Hobbywing EZRun Max8 G2S Brushless ESC/4268SD G2R Motor Combo (2500kV)

Hobbywing EZRun Max8 G2S Brushless ESC & 4268SD G2R Sensored Brushless Motor Combo – 1/8 Scale (3-4S)

The Hobbywing EZRun Max8 G2S and 4268SD G2R combination delivers a purpose-matched brushless power system engineered from the ground up for 1/8 scale performance. The optimized G2R sensored brushless motor brings maximum torque, increased power output, and lower internal resistance compared to its predecessor — translating to more aggressive launches, higher top-end speeds, and cooler, more efficient operation across extended runs. A fully closed case design keeps dust and debris out of the motor internals, while the waterproof sensored connection lets you run the benefits of a sensored system in wet conditions without concern. On the ESC side, three built-in 680uF capacitors deliver a combined 870uF of capacitance — a 74% improvement over the standard MAX8 — eliminating the need for external capacitors and improving overall power delivery stability. The patented frameless fan design with high-airflow side intake and a copper thermal conduction sink on the internal power plate keep temperatures in check during demanding runs, while the advanced electronic switch design prevents dust, humidity, and impact issues that plague conventional ESC designs.

Real-time data logging via the HW LINK app and Bluetooth OTA programmer lets you monitor throttle position, voltage, current, temperature, and motor RPM in real time and review recorded data for post-run analysis and tuning. 32-degree turbo timing capability increases RPM by up to 25% with compatible motors. A built-in switch-mode BEC with 6A/6V or 15A/7.4V/8.4V output covers high-voltage servo requirements without an external BEC. Firmware upgrades are supported via the Hobbywing Multifunction LCD Pro Program Box or OTA Programmer, both sold separately.

Features:

Motor — EZRun 4268SD G2R

• Advanced sensored brushless technology for precise control, smooth power delivery, and aggressive launches
• Optimized G2R design with lower internal resistance for maximum torque, power, and cooler operation
• Fully closed case design keeps dust and debris out of internal components
• Waterproof sensored motor and waterproof sensor connection for reliable all-condition operation
• Engineered for exceptional acceleration and top-end speed in 1/8 scale applications

ESC — EZRun Max8 G2S

• Three built-in 680uF capacitors (870uF combined) — 74% improvement over standard MAX8, no external capacitors needed
• Patented frameless fan design with high-airflow side intake for rapid heat transfer to integrated housing radiator
• Copper thermal conduction sink on internal power plate for efficient cooling
• Enhanced waterproof and dust-proof design for various climates and conditions
• Built-in switch-mode BEC: 6A at 6V or 15A at 7.4V/8.4V — supports high-voltage servos
• Advanced electronic switches prevent dust, humidity, and impact issues
• 32-degree turbo timing increases RPM by up to 25% with compatible motors
• Real-time data logging via HW LINK app — monitors throttle, voltage, current, temperature, and motor RPM
• Firmware upgradeable via Hobbywing Multifunction LCD Pro Program Box or OTA Programmer (sold separately)
• Multiple protections: low-voltage cutoff, ESC and motor thermal protection, failsafe/throttle signal loss, reverse polarity

Specifications:

ESC

Motor

In the Box:

Note: Hobbywing Multifunction LCD Pro Program Box and OTA Programmer are sold separately and required for firmware updates and advanced programming access.
