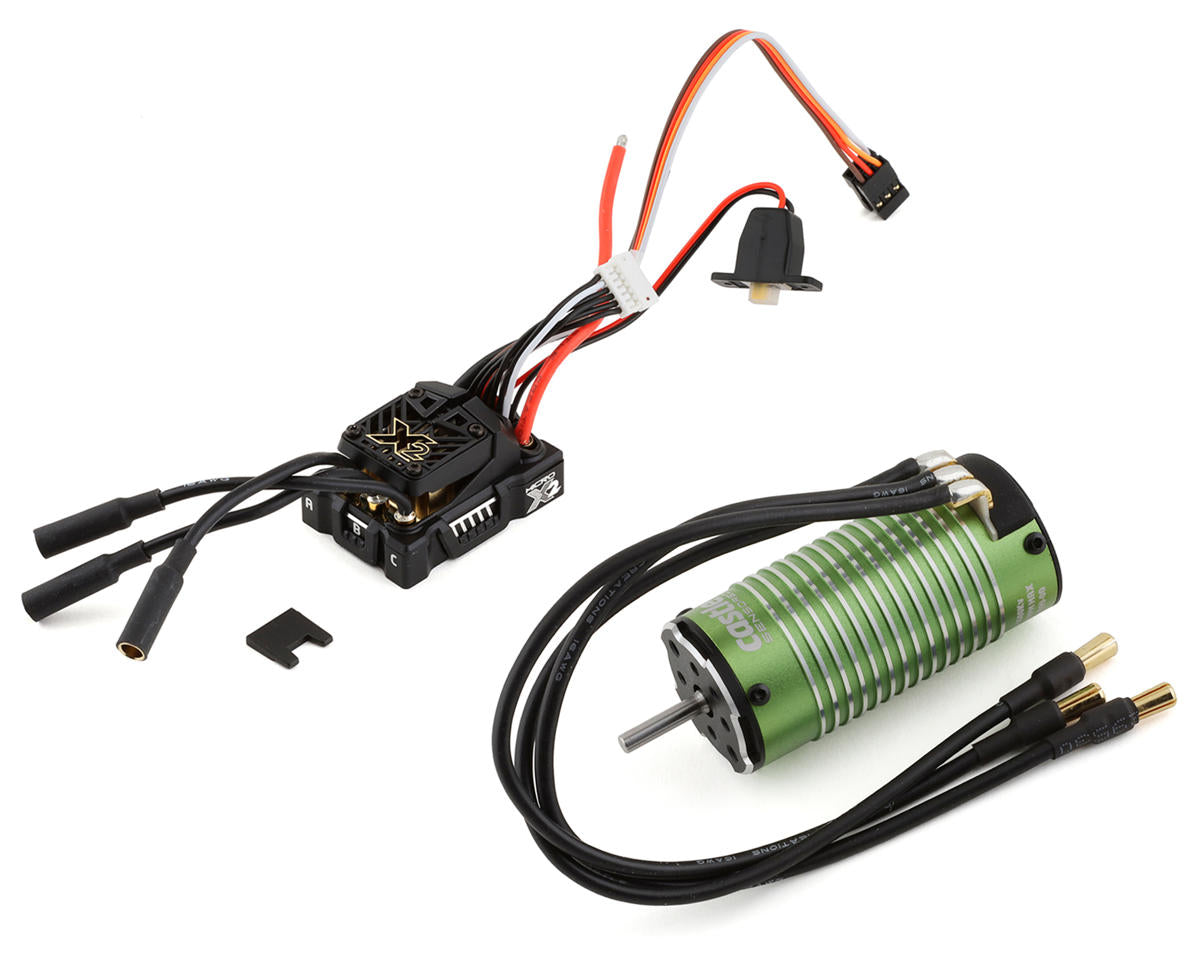

Castle Creations Mamba Micro X2 Waterproof Sensored Brushless Combo — 1/14 Scale
Sensored brushless performance has arrived for 1/14 scale vehicles, and Castle Creations delivers it with the precision and build quality the brand is known for. The Mamba Micro X2 ESC pairs with the 1010-5600Kv sensored motor to produce buttery-smooth low-speed control, strong torque, and highly efficient power delivery across the RPM range. Whether you're rock crawling, circuit racing, or drag racing, the sensored system provides the predictability and throttle resolution that separates this combo from standard brushless setups. CRYO-DRIVE technology keeps the ESC running cooler at partial throttle, while QUIETSENSE shielding ensures the motor and ESC stay in sync under all conditions. Designed and manufactured in Olathe, Kansas, and backed by a 1-year manufacturer warranty.
ESC Features
- Input voltage range: 2S–4S LiPo (16.8V max)
- Waterproof design for use in nearly any environment
- Sensored motor capable (with optional sensor harness)
- CRYO-DRIVE technology for cooler, more efficient partial-throttle operation
- Data logging capability
- Six common settings programmable via transmitter
- Additional settings and updates via Castle Link software (Windows) or Castle Link App (Android/iOS) — USB adapter coupon included
- Telemetry ready — compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX, and T7PXR transmitters
- Auxiliary wire functionality for on-the-fly adjustments including Max Power and Max Brake
- Audible alerts for calibration and error conditions
- Proportional brake; reversible (can be disabled)
- Waterproof on/off switch
- 3.5mm bullet connectors; bare battery input leads (connector must be added)

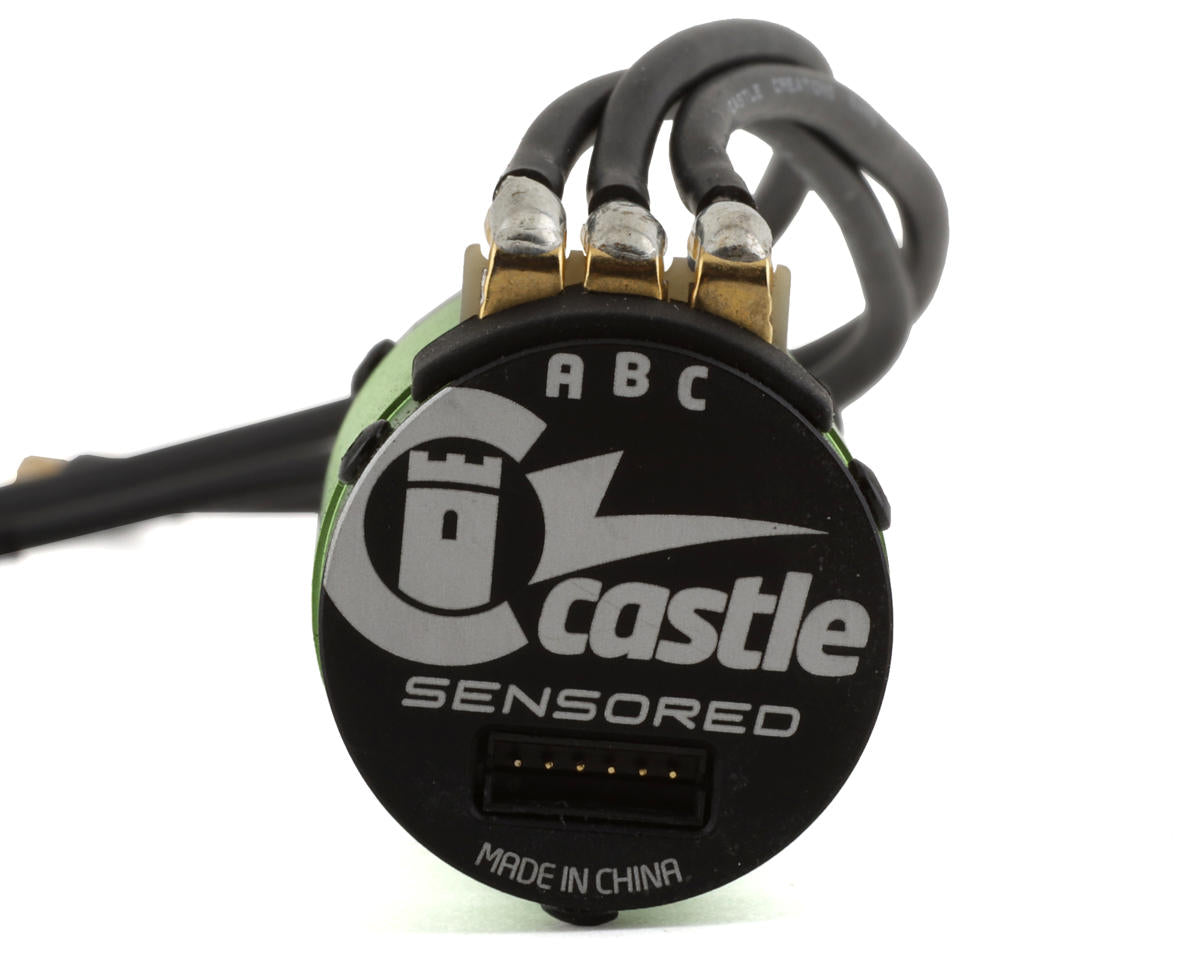

Motor Features
- Improved 4-pole, 12-slot design for exceptional efficiency and reduced heat
- QUIETSENSE technology shields sensors from magnetic field noise for precise, reliable sync
- Flux Shield and secondary Sense Magnets for higher-precision, efficient startups
- Optimized design eliminates mechanical timing adjustments — uniform timing and torque in both directions automatically
- 5600Kv rating; 80,000 RPM max
- 4mm male bullet connectors
| Specification |
ESC |
Motor |
| Input Voltage |
2S–4S LiPo (16.8V max) |
2S–3S LiPo |
| BEC |
2A Peak, 5.5V or 7.5V (5.5V default) |
— |
| Kv |
— |
5600Kv |
| Max RPM |
— |
80,000 |
| Size (LxWxH) |
41.6 x 29.4 x 21.3mm |
59.5mm length, 28.25mm diameter |
| Weight |
1.66oz (47g) |
5.17oz (146.5g) |
| Shaft |
— |
15mm length, 1/8" (3.17mm) diameter |
| Mounting Holes |
— |
2.5mm @ 14 & 16mm / 3mm @ 19mm |
| Connectors |
3.5mm bullets |
4mm male bullets |
| Max Vehicle Weight |
3 lbs |
3 lbs |
| Application |
1/18 scale vehicles up to 3 lbs |
1/14 and 1/16 scale vehicles up to 3 lbs |
| In the Box |
Qty |
| Mamba Micro X2 ESC |
1 |
| 1010-5600Kv Brushless Sensored Motor |
1 |
| Quick Start Guide |
1 |
| Castle Decals |
1 set |
| Needed to Complete |
Notes |
| Battery Connector |
Castle 4.0mm Polarized, Deans Ultra Plug, or XT60 recommended — minimum 40A rating |
| LiPo Battery |
2S–4S; minimum 1500mAh, 30C continuous discharge recommended |

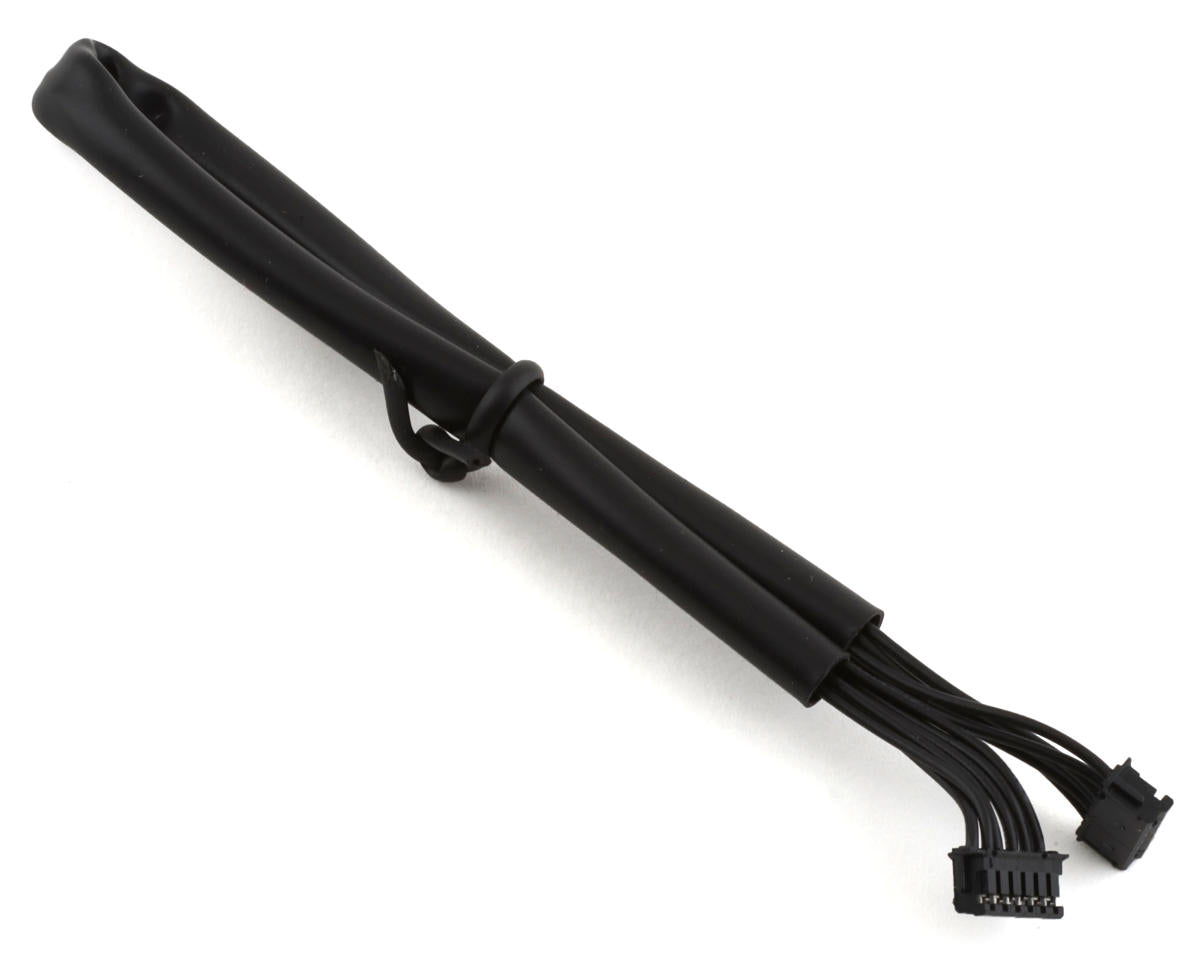

| Sensor Harness |
Required for sensored operation (sold separately) |
| Castle Link USB Adapter |
For full PC-based programming (coupon included) |
| B-LINK Bluetooth Adapter |
For app-based programming (sold separately) |
LiPo Safety Warning: Never exceed 16.8V input — voltages above this will cause irreparable ESC damage and void the warranty. Use a minimum 1500mAh, 30C continuous discharge LiPo battery. Never exceed 180°F on the motor or ESC; monitor temperatures closely as overheating will permanently damage motor magnets.
Waterproofing Notice: The Mamba Micro X2 is waterproof but not intended for full submersion. Avoid corrosive liquids such as salt water. Always rinse with clean water after exposure to corrosives or dirt. Confirm that all other vehicle components — battery, servos, radio, and chassis — are also waterproof before exposure to liquids.
