Tekin RSXpro Mod Sensored Sensorless D2 ESC *Archived

Save $ 150.01
TekinSKU: TEKTT1159
No reviews

Price:
Sale price$ 219.99 Regular price$ 370.00
Stock:
Sold out

Description

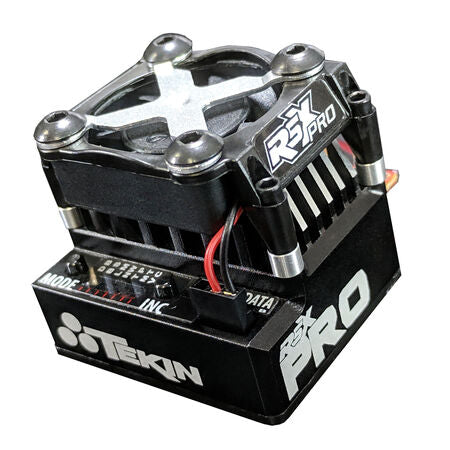

The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win.

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.

Features

  • Billet 6061-T6 Aluminum Heat Sink Housing
  • FET Package
  • HD Easy Solder Posts
  • Optional Shroud and High RPM Cooling Fan
  • 3rd Channel Input for On-The-Fly Drag Brake Adjustments <>
  • QuickTune™ One Touch Programming
  • Adjustable Torque Control *
  • Adjustable Throttle and Brake Frequencies *
  • HD High Voltage Programmable BEC *
  • HotWire™ Programming Port *
  • On-the-fly Drag Brake Adjustment
  • Data Logging Capability *
  • Sensor Checker
  • On-Board Temperature Indicator
  • ESC Self Diagnostics with Error Codes
  • Fully Proportional Forward/Brake/Reverse
  • Brushless and Brushed Motor Drive
  • Sensored or Sensorless Operation
  • LiPo Safe with Custom Voltage Cutoffs
  • Sensor Plug for Precise Commutation
  • HDAC: High Density Copper PCB's
  • Ultra-smooth and Precise Throttle and Braking Control

On Board QuickTune™ Programmable Features

  • DB - Drag Brake (13 steps)
  • BS - Brake Strength (13 steps)
  • LM - Torque Limiter (7 steps)
  • NW - Neutral Width (13 steps)
  • TP - Timing Profiles 5 Preset - 2 Custom*
  • MT - Motor Type
    • Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV
  • Delay REV Motor Direction
    • Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
  • VC - Voltage Cutoff : 2S, 3S, Custom*

Specifications

Auto Cutoff
LiPo Safe with Custom Voltage Cutoffs
BEC Voltage
6.0v / 7.4v @ 5.5amps
Brakes
Yes
Forward
Yes
Input Voltage
2S-3S LiPo / 4-12S NiMH-NiCD
Low-Voltage Cutoff Programmable
Yes
Maximum Burst Current
210amps per phase
Product Height
0.82" (21mm)
Product Length
1.21" (31.2mm)
Product Weight
1.4oz / 40g
Product Width
1.43" (37.2mm)
Programmable
Yes
Reverse
Yes
