Team Associated RC10 B6.2 Team 1/10 2wd Electric Buggy Kit
ASC90023

Regular price $ 499.99 Sale price $ 314.99 Save $ 185.00
/

Overview

Features

  • Lightweight 7075-T6 hard anodized and +3mm increased length
  • Symmetric 75mm rear arms with improved geometry and stiffness can be flipped to allow an in-between rear shock mounting position
  • Longer rear arm (75mm) improves stability and jump landing
  • Outer rear hinge pins captured with bolt head and lock nut for increased durability
  • Updated left side rail with motor fan mount (fan not included)
  • Rear hub assembly with modular vertical ball stud camber link mount and axle height adjustment
  • Front wing mount and front wing included
  • Bolt-on +1 steering block arms for improved steering response
  • 69mm CVA bones for reduced bone plunge and minimized friction at drive pin
  • Body design with lower center of mass
  • Clear body and wing included
  • 24g and 36g steel chassis weights included for improved balance and lower overall center of mass
  • 5mm aluminum clamping wheel hexes
  • Fluid filled gear differential
  • 3-gear Laydown Stealth(R) transmission for lower and forward CG
  • Differential height adjustment with 0, 1, 2, and 3mm inserts included
  • 7075-T6 aluminum arm mounts with optimized roll center positions and inserts for tuning anti-squat and toe adjustments
  • Heavy-duty V2 routed graphite front shock tower with tower guard
  • Heavy-duty V2 routed graphite rear tower, standard
  • V2 12mm Big Bore threaded aluminum shocks with X-rings

Overview

1:10 scale 2WD off road has been Team Associated's signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 13 of the 18 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated has won more 2WD I.F.M.A.R World Championships than all other manufacturers combined!

The B6 platform introduced the use of two separate chassis configurations -- the B6.2 continues this theme. The B6.2 will be the buggy of choice for high-grip carpet or turf track surfaces with its Laydown transmission assembly and anti-roll bars for optimal mass balance. The B6.2D includes both Layback and Laydown transmission assemblies to fine-tune mass balance to track conditions; add to that the addition of +1 Ackermann plates and gull wing suspension arms to tune the steering for razor-sharp feel and control.

Both cars share many great features, such as an easy-access differential, outer rear hinge pins captured with bolt head and locknut for increased durability, symmetric rear arms that can be flipped to allow an in-between rear shock mounting position, and a slipper assembly. The setups and tuning parts remain interchangeable between the two configurations. Both versions come with the speed, durability and lineage expected of a true champion. Choose the configuration that suits your track and conquer the competition!

Needed to Complete
  • 1:10 scale electric motor and electronic speed control
  • 7.4V, 7.6V LiPo, 6.6V LiFe with "shorty" battery
  • dimensions (Reedy batteries #27335, 27336, 27337, 27338)
  • Battery charger (#ASC27200)
  • 2-channel surface transmitter
  • 2-channel receiver
  • Steering servo (#ASC27113, ASC27114)
  • Lexan(TM)-specific spray paint for body
  • 1:10 scale off-road wheels and tires
  • Pinion gear
  • Other helpful items: Silicone shock fluid, Silicone diff fluid, FT body scissors (#ASC1737), FT body reamer (#ASC1499), FT hex/nut driver set (#ASC1519), CA tire adhesive (#ASC1597), Hobby knife, Needle nose pliers, Wire cutters, Soldering iron, Calipers or a precision ruler
What's in the Box?
  • (1) RC10B6.2 Team Kit
  • (1) Product Manual

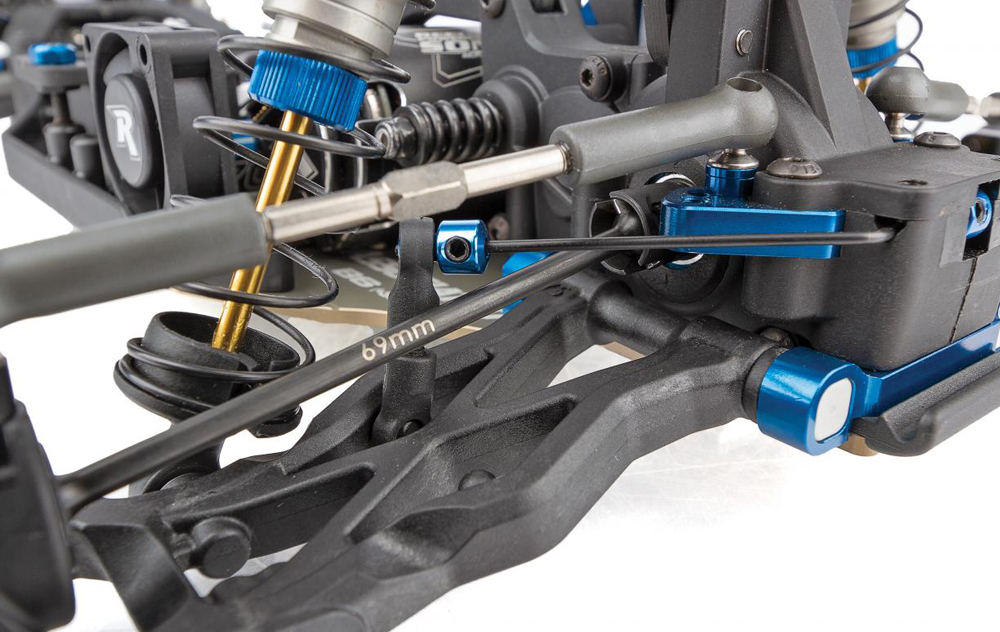

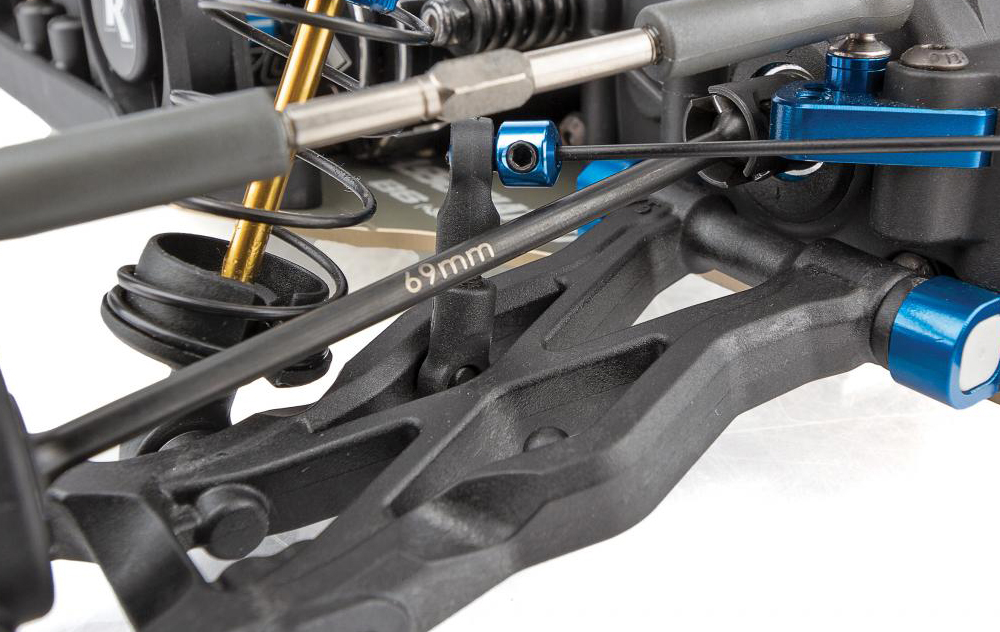

CVA Bones

69mm CVA bones for reduced bone plunge and minimized friction at drive pin.



75mm Rear Arms

Symmetric 75mm rear arms with improved geometry and stiffness can be flipped to allow an in-between rear shock mounting position.

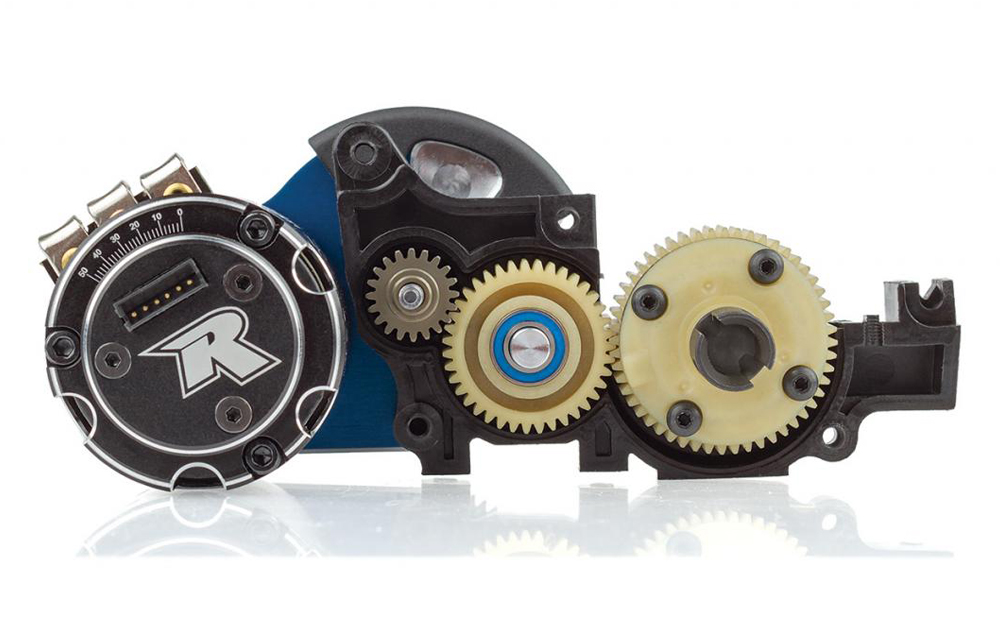

Transmission

3-gear Laydown Stealth™ transmission for lower and forward CG.

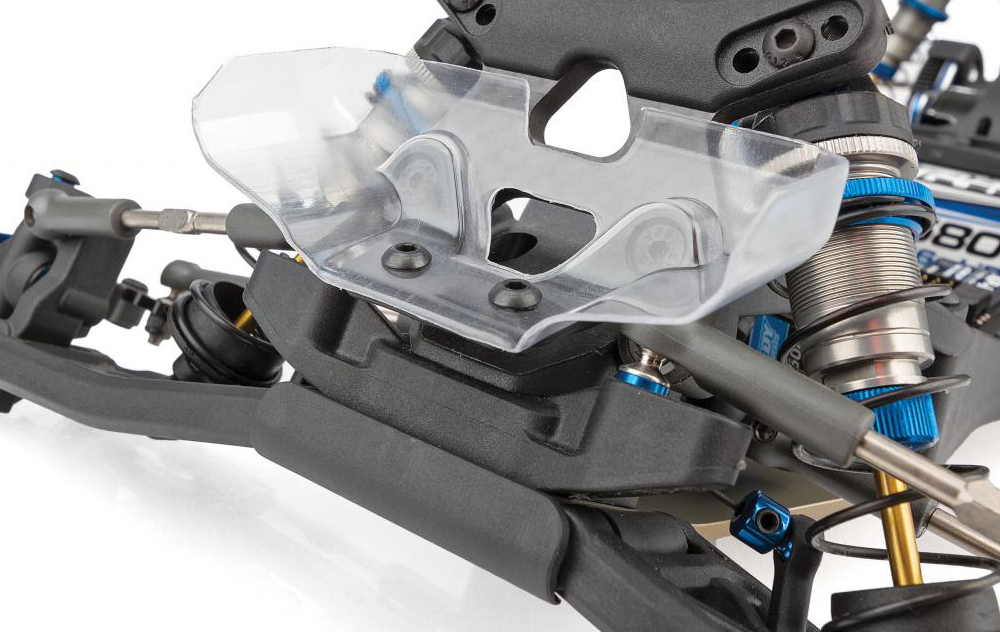

Wing Mounts

Front wing mount and front wing included.

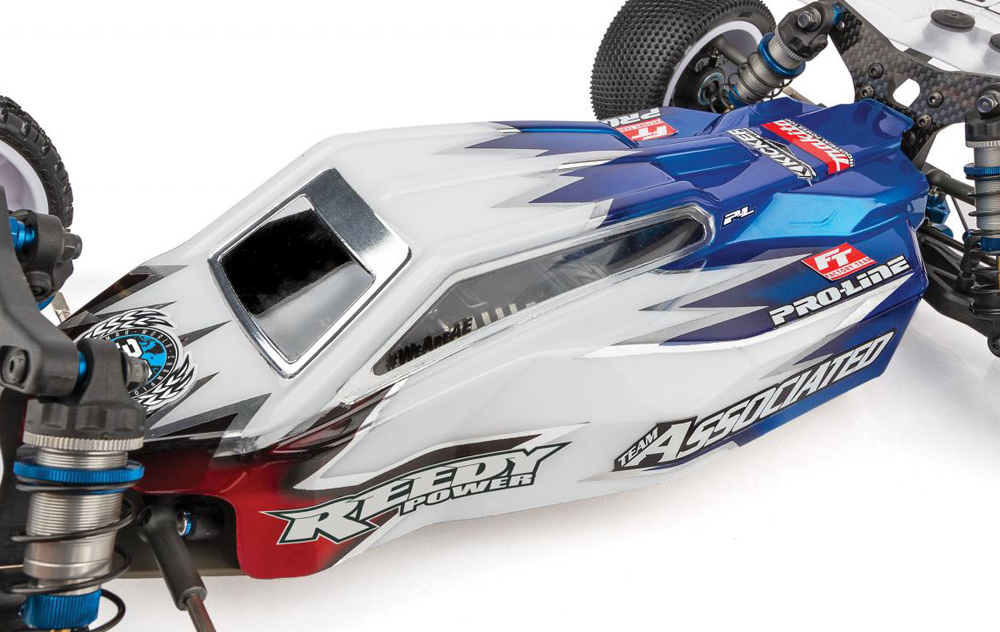

Body

Clear body design with lower center of mass included.



Chassis Support

Swaybar linkage geometry has been altered to provide more chassis support throughout the suspension travel.

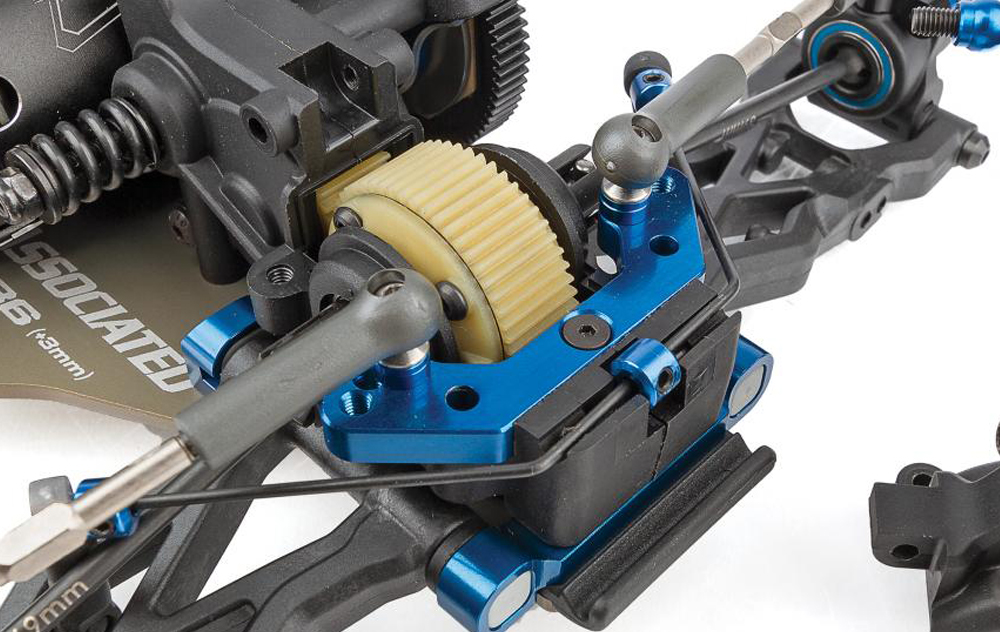

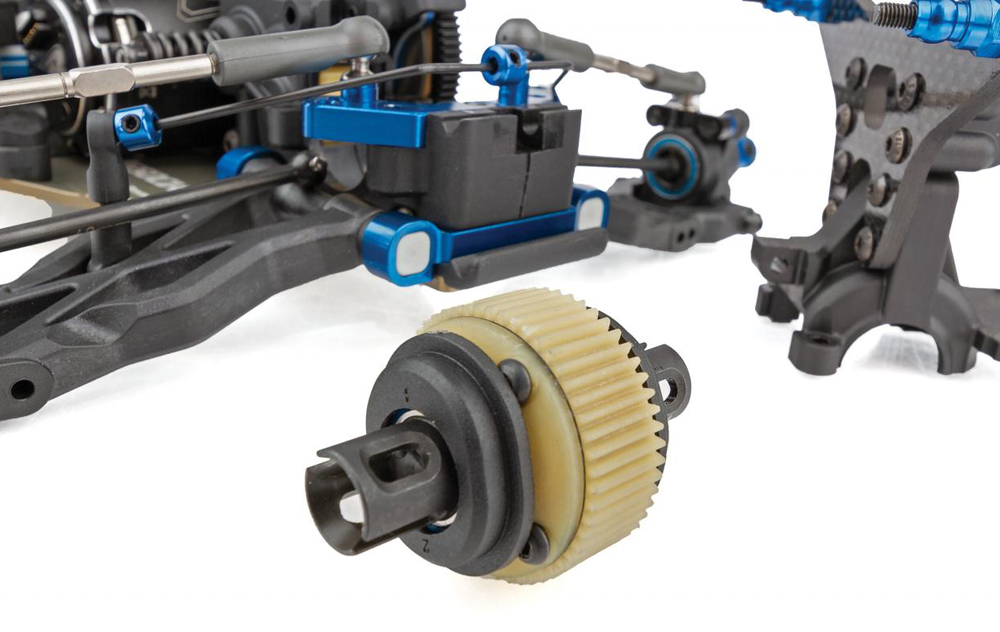

Gear Differential

Easy-access gear differential with 0, 1, 2 and 3mm included height adjustment inserts.

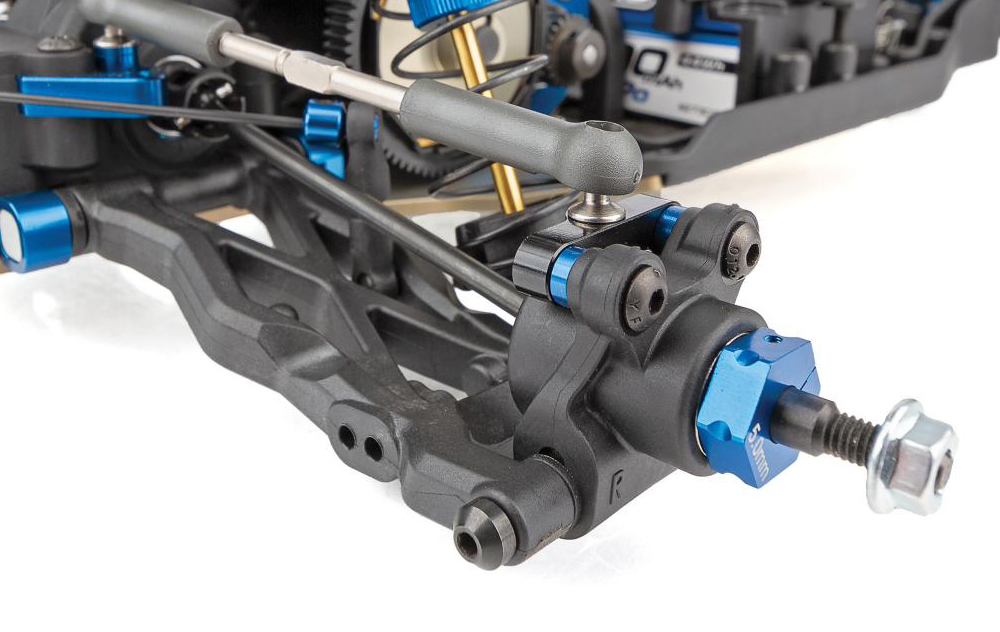

Rear-hub Assembly

Rear-hub assembly with modular vertical ball stud camber link mount and axle height adjustment and 5mm clamping wheel hexes.



Chassis weights

24g and 36g steel chassis weights included for improved balance and lower overall center of mass.



Steering Block Arms

Bolt-on +1 steering block arms for improved steering response.



Specifications

Approximate Assembly Time
3-5 Hours
Ball Bearings
Full set
Battery
Sold Separately
Body
New design with lower center of mass
Brakes
Integral with ESC
Bushing Material
Metal
Charger
Sold Separately
Chassis
7075-T6 aluminum
Completion Level
Kit
Differential
Fluid filled gear type, adjustable height
Drivetrain
2WD
Gear Pitch
48-Pitch
Max Battery Dimensions
L, W, H: 3.8 x 1.8 x 0.97" (95.6 x 46.7 x 24.8mm)
Motor Size
Sold separately
Motor Type
Brushless required
Pinion
Not Included
Power Type
Electric
Product Height
Varies
Product Length
15.35" (390mm)
Product Weight
1.81lbs (821g)
Product Width
Varies
Radio
Sold
Receiver
Sold Separately
Scale
1/10
Servos
Sold separately
Shock Type
Oil-filled
Speed Control
Sold Separately
Suspension
Gull-wing front arms
Vehicle Type
Buggy
Water-Resistant
Yes
Wheelbase
Varies
