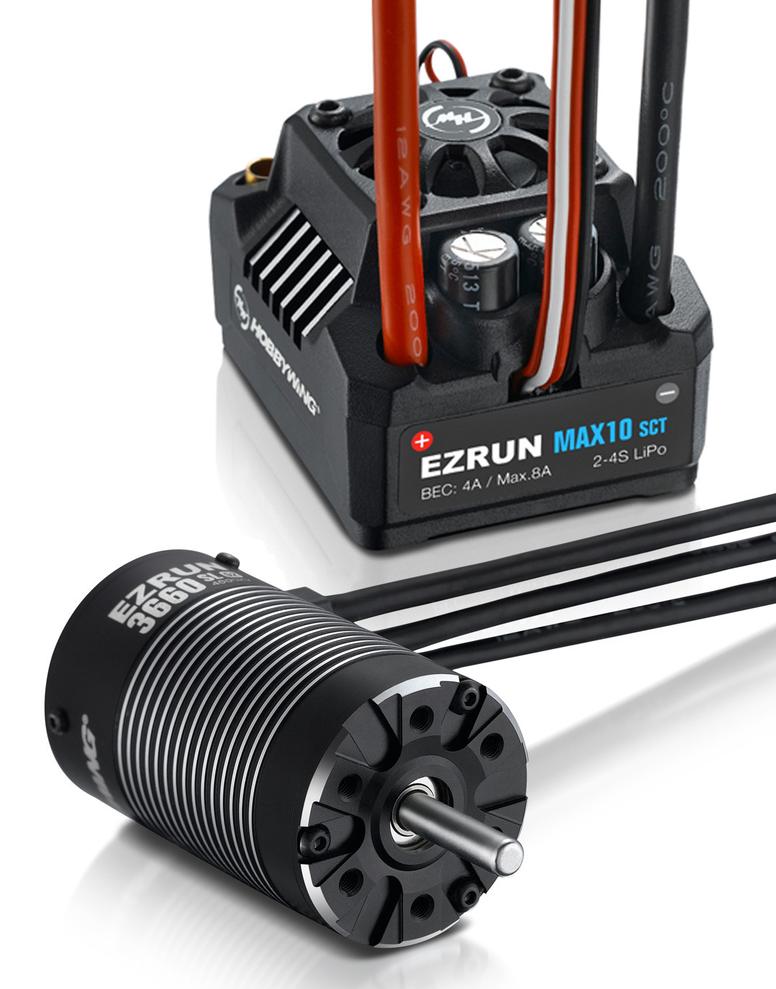

This is the Hobbywing EZRun MAX10 SCT 1/10 Waterproof Brushless ESC and 3660SL Motor Combo. This combo is compatible with up to 3S LiPo power, and is the perfect upgrade for your 1/10 scale 4WD truck and monster truck vehicles.
NOTE: This motor included in this combo requires 5mm bore pinion gears. Package includes 5mm bore 21T pinion.
ESC Features:
- High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
- Great Flexibility & Versatility: With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
- Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
- High Voltage Built-in BEC: The MAX10 SCT has adopted the world's first HV built-in BEC with an output current of up to 3 Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by 1/10 scale vehicles.
- Advanced & Secure Electronic Switch: The MAX10 SCT features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
- Regular Firmware Updates Free of Charge: You can upgrade the MAX10 SCT with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.
- Maintenance Free: The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.
Motor Features:
- Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
- O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
- Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.
ESC Specifications:
- Continuous Current: 120A
- Peak Current: 830A
- Motor Type: Sensorless Brushless Motor
- Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks
- Motor Limit:
- 2S LiPo: KV ≤6000
- 3S LiPo: KV ≤4000
- 4S LiPo: KV ≤3000
- LiPo/NiMH Cells: 6-12S NiMH, 2-4S LiPo
- BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode BEC)
- Size (LxWxH): 49.0x39.5x34.7mm
- Weight: 105g
- Programming Port: FAN/PRG Port
Motor Specifications:
- kV: 4000
- LiPo: 2-3S
- No-Load Current: 5.7A
- Motor Diameter & Length: 36mm & 60mm
- Shaft Diameter & Length: 5mm & 18.5mm
- Pole: 4
- Weight: 268 grams
Includes:
- EZRun Max10 SCT ESC
- EZRun 3660SL Brushless Motor (4000kV)
Recommended Hobbywing Programmers:
- HWA30502000014: Hobbywing Multifunction LCD Program Box
- HWA86020010: Hobbywing Program Box
