Description
(DISCONTINUED)

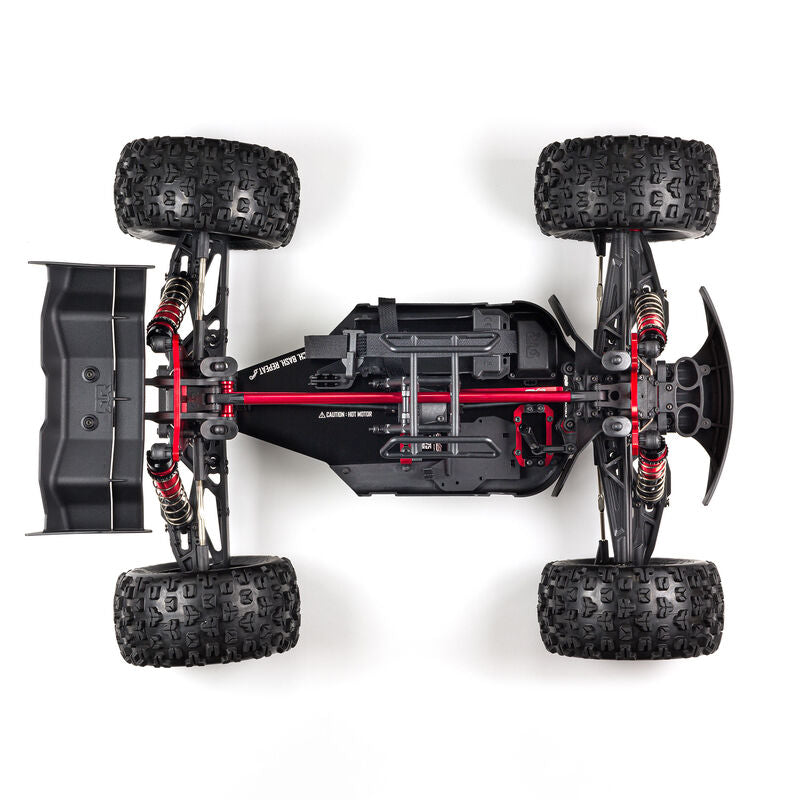

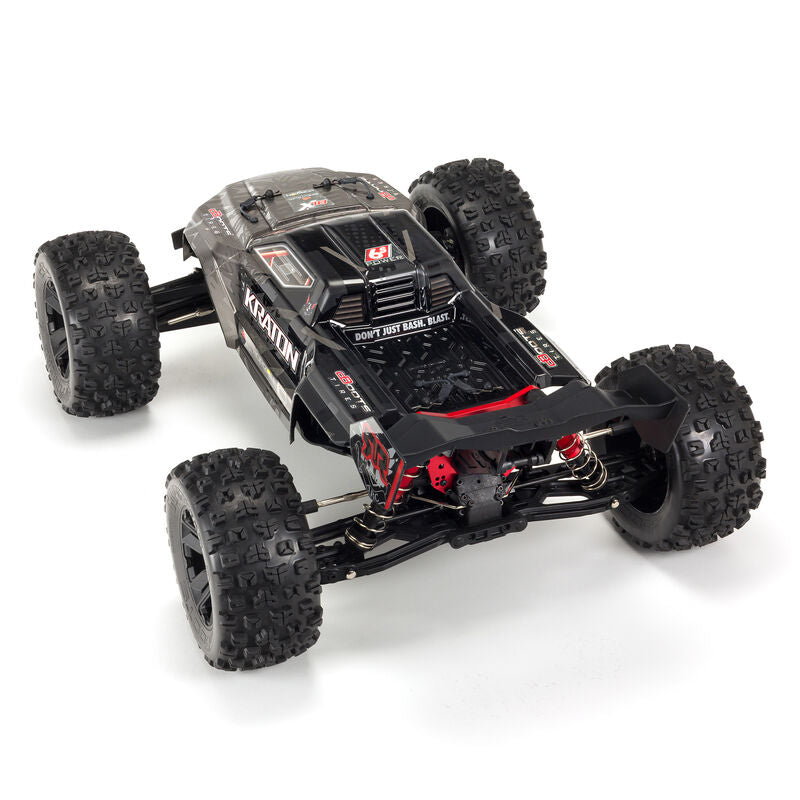

The ARRMA® KRATON™ EXtreme Bash Roller Monster Truck adds extra toughness everywhere it counts, making this 1/8 scale chassis the perfect platform for high-speed bashing over brutal terrain. It's fully assembled and ready to accept your choice of powerful electronics. Top off the KRATON™ EXtreme Bash Roller Monster Truck with the included, exclusive EXB matte and gloss finish body — and you're ready to bash without boundaries.
In The Box
- (1) ARRMA KRATON 1/8 Scale EXtreme Bash Roller Monster Truck 4WD Kit
- (1) 1.5mm 2.0mm 2.5mm 3.0mm 5.0mm Hex Wrenches
- (1) Multi Wrench
- (1) Product Manual

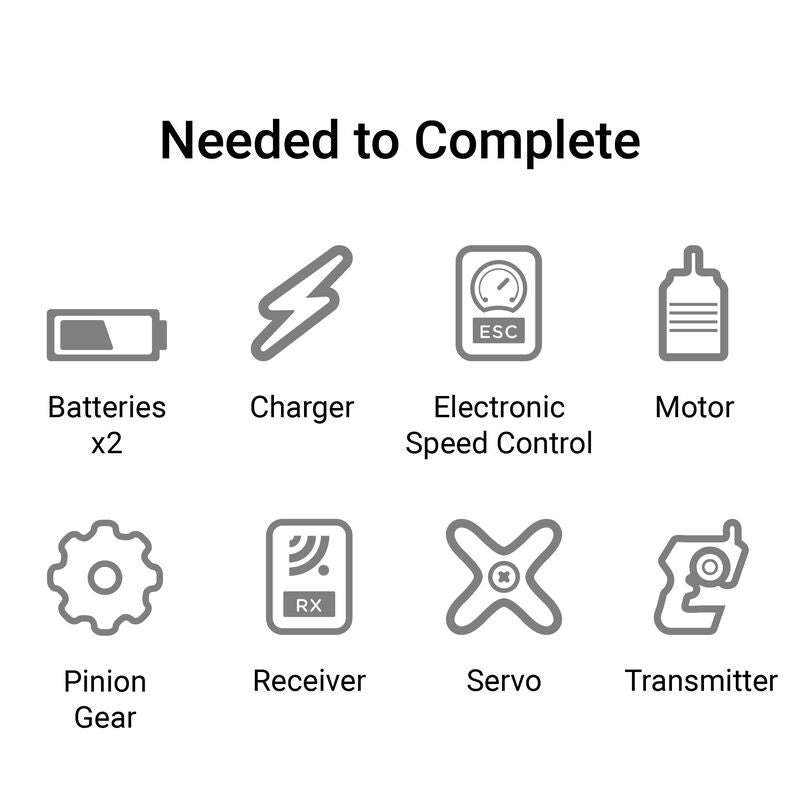

Needed to Complete
- (1) 2+ Channel Transmitter and Receiver
- (1) Metal Gear, Hi-Torque Steering Servo
- (1) Electronic Speed Control
- (1) Motor
- (1) Mod 1 Pinion Gear
- (2) 2S or 3S LiPo Battery
- (1) Compatible LiPo Battery Charger
Features
- Designed Fast, Designed Tough
- EXB (EXtreme Bash) components for extreme durability
- 7075 T6 Aluminum laser-etched chassis plate
- Aluminum front and rear chassis braces
- Center body support and brace for maximum durability
- Strong composite chassis side pods
- Aluminum front upper hanger, top plate, and rear suspension mount
- Heavy-duty front and rear arms with aluminum strengthening cap
- Heavy-duty steel turnbuckles
- Heavy-duty front upper steel hinge pins
- Heavy-duty drivetrain
- Durable steel driveshafts
- All-metal diff outdrives and gearbox internals
- Plated limited-slip differentials
- Safe-D input gears
- Oil-filled adjustable shocks
- 7075 T6 Anodized aluminum front and rear shock towers
- Red-anodized aluminum servo mount
- Large volume waterproof receiver box
- Black matte and gloss effect body
- Front bumper
- High downforce wing
- Multi-terrain DBoots® Copperhead™ 2 tires on multi-split spoke wheels
- Durable wheel hubs
- 2-year warranty (see website support for details)
Overview
"Designed Fast, Designed Tough" may be an understatement when describing the KRATON® EXtreme Bash Roller Monster Truck. Made of strong anodized 7075 T6 aluminum, the laser-etched chassis plate gains further rigidity from the use of front and rear aluminum chassis braces. Strong composite chassis side pods and a center body support and brace provide more rugged resilience.
Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXtreme Bash toughened suspension system smooths the ride, with a steel rear suspension mount and adjustable oil-filled shocks mounted on 7075 T6 anodized aluminum front and rear shock towers.
The KRATON™ EXtreme Bash Roller Monster Truck's list of EXB components also includes the following — and more — to give this big machine uncompromising muscle:
- EXB Heavy-duty front and rear arms with aluminum strengthening cap
- EXB Heavy-duty steel turnbuckles
- EXB Heavy-duty front upper steel hinge pins
- EXB Plated limited-slip differentials
- EXB Red-anodized aluminum servo mount
- EXB Large volume waterproof receiver box
- EXB Front bumper
Its aggressive dBoots® Copperhead™ 2 tires arrive mounted on multi-spoke wheels with durable hubs to deliver all-terrain traction — assisted by a high downforce wing that adds an aggressive edge to the look of the exclusive EXB matte and gloss effect finished truck body.

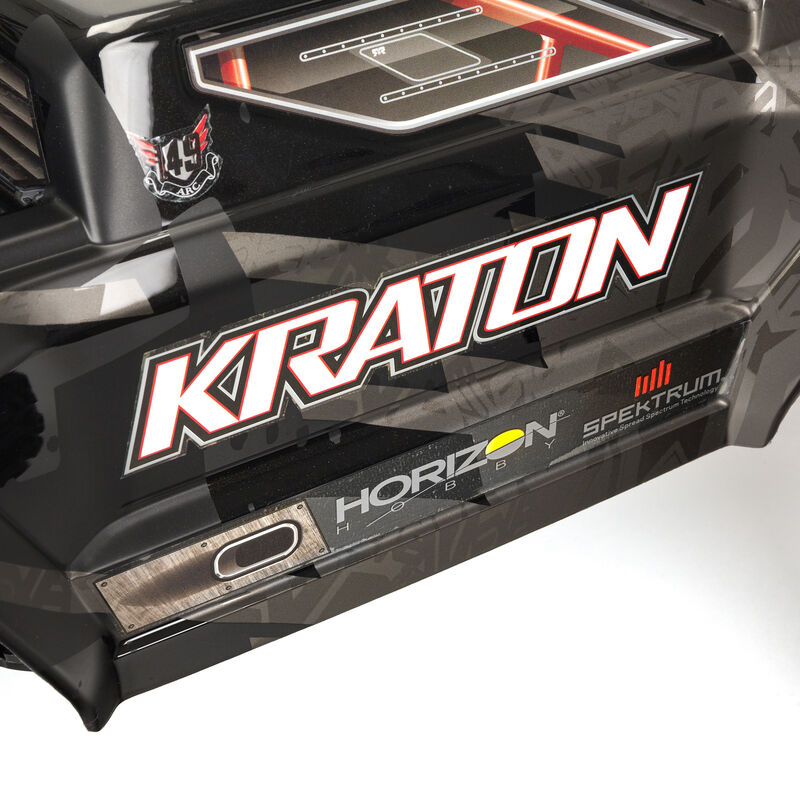

EXCLUSIVE EXB MATTE & GLOSS EFFECT BODY
ETCHED TO PERFECTION
EXB FOR EXTREME BASH TOUGHNESS
REDESIGNED ALL-METAL INTERNALS THROUGHOUT FOR HANDLING GREATER POWER

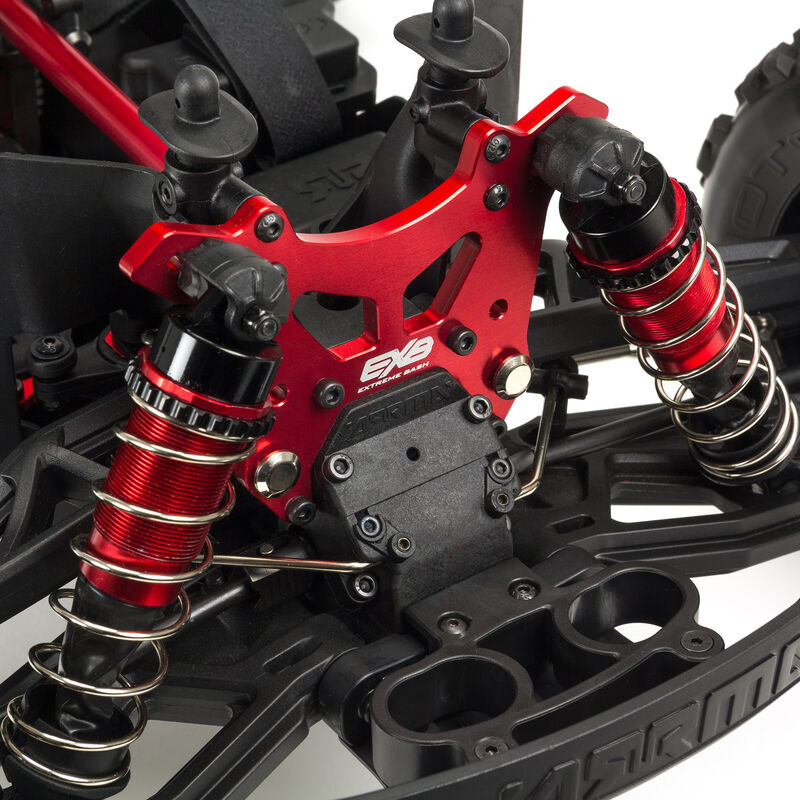

EXB ALUMINUM FRONT SHOCK TOWER

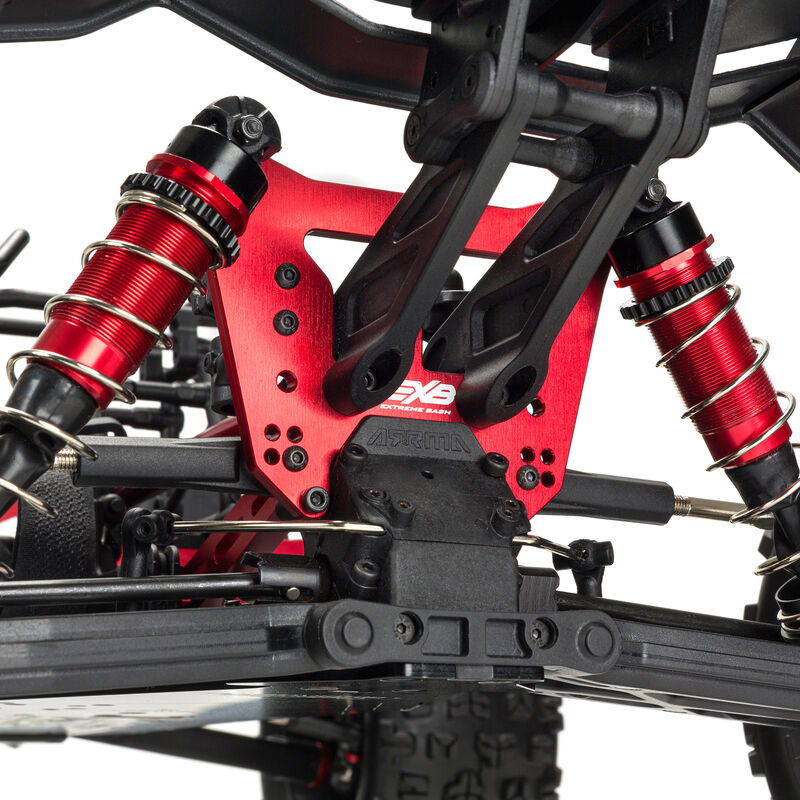

EXB ALUMINUM REAR SHOCK TOWER
EXB PLATED LIMITED SLIP DIFFERENTIAL
RED ANODIZED ALUMINUM FRONT UPPER HANGER
WIDER TOOTH PROFILE = STRONGER GEARS
SAFE D FIRST - PLASTIC LOCKING SLEEVE, NO RED THREAD LOCK REQUIRED
RUBBER SHIELDED BEARINGS THROUGHOUT
EXB HEAVY-DUTY STEEL TURNBUCKLES
HEAVY-DUTY FRONT ARMS WITH ALUMINUM STRENGTHENING CAPS
HEAVY-DUTY REAR ARMS
EXB HEAVY-DUTY FRONT UPPER STEEL HINGE PINS
EXB HEAVY-DUTY FRONT & REAR SHOCK PINS

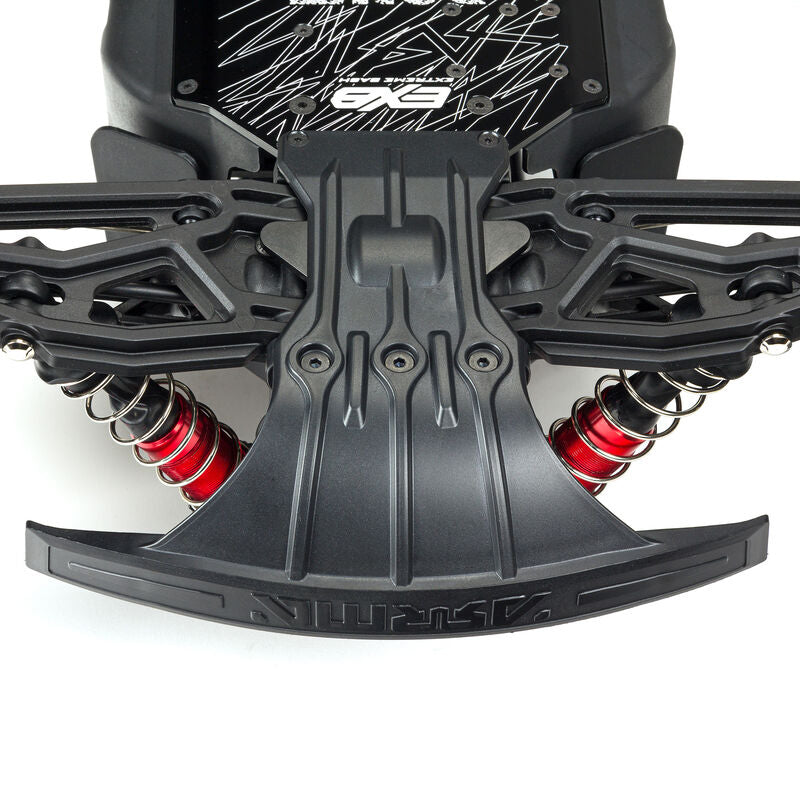

EXB FRONT BUMPER WITH BUILT IN SKID PROTECTION AND CRASH ABSORBING DESIGN

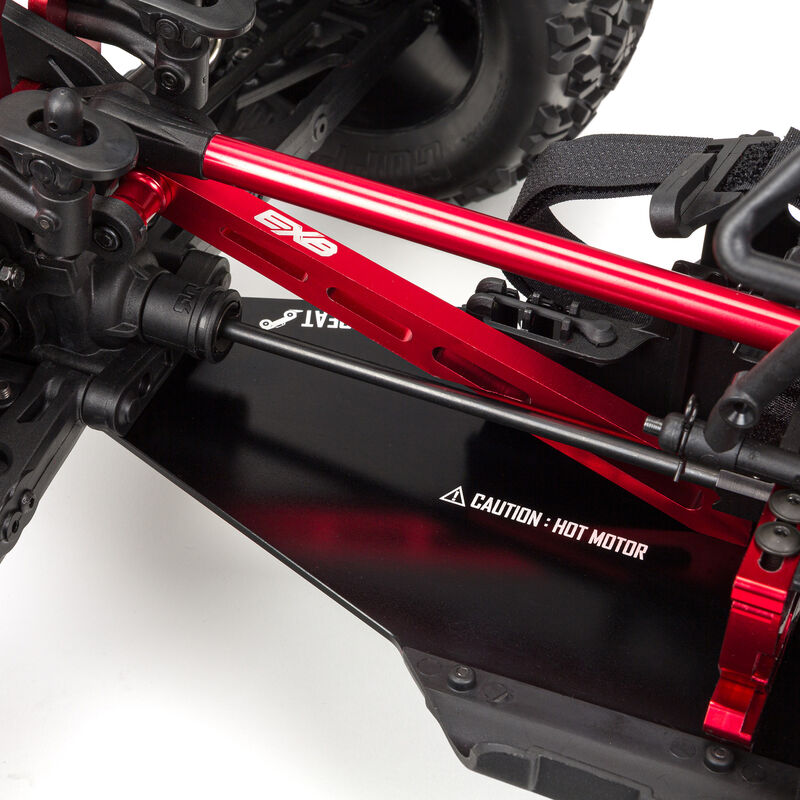

EXB FRONT ALUMINUM CHASSIS BRACE
EXB REAR ALUMINUM CHASSIS BRACE

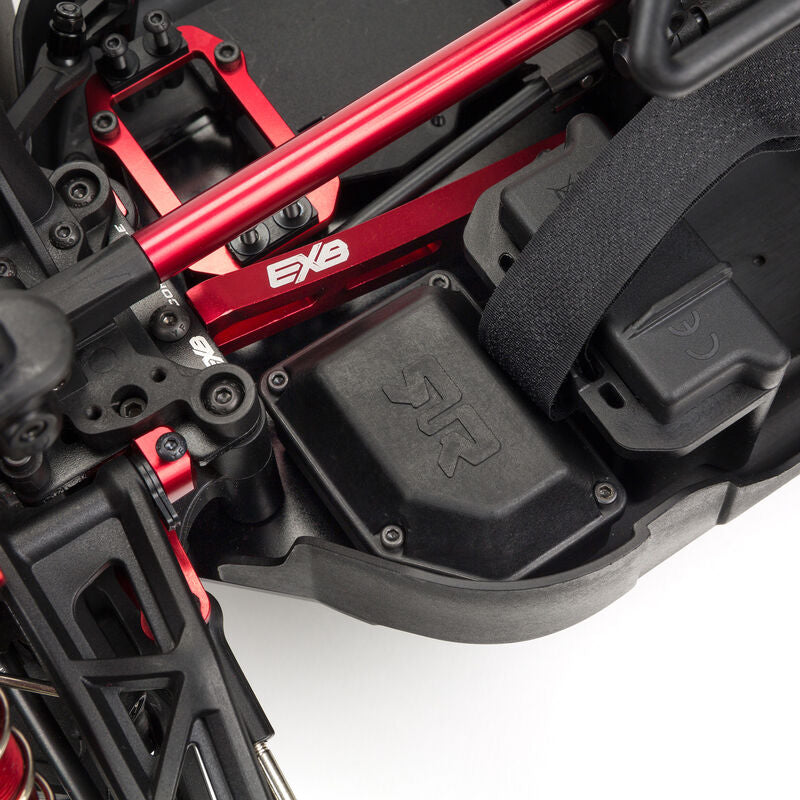

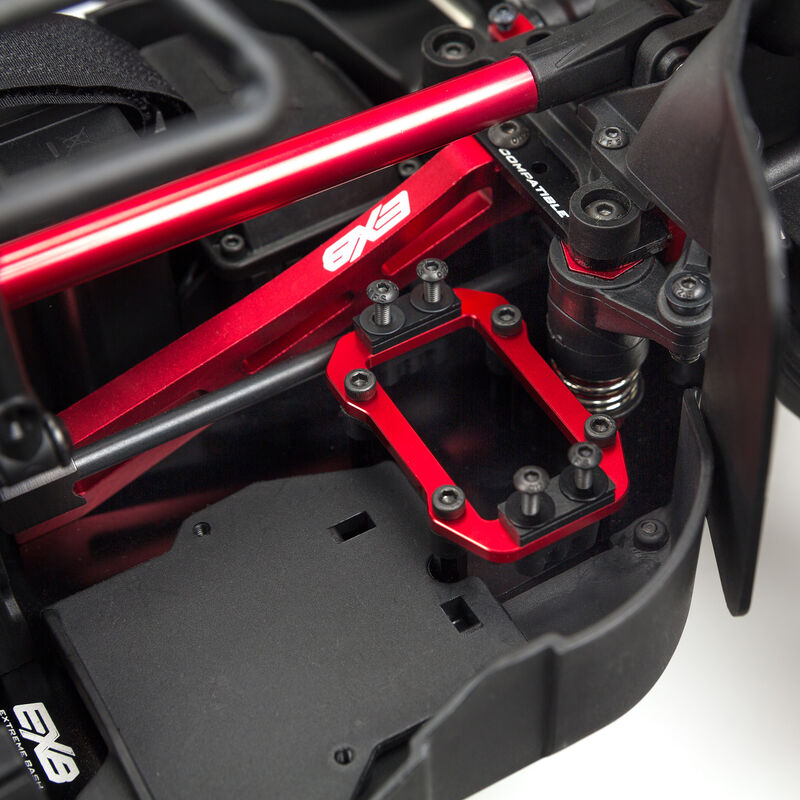

EXB ANODIZED ALUMINUM SERVO MOUNT
LARGE VOLUME WATERPROOF RECEIVER BOX
Product Specifications
| Power Type | Electric |
| Gear Pitch | 1.0 Module |
| Servos | Sold Separately |
| Product Weight | 9.35 |
| Tire Tread | dBoots COPPERHEAD2 |
| Vehicle Type | Monster Truck |
| Water-Resistant | Yes |
| Wheelbase | 14.84 in (377mm) |
| Wheel Type | Monster Truck |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Differential | Three oil-filled metal gear |
| Receiver | Sold Separately |
| Shock Type | Adjustable, oil-filled, coil-over springs |
| Radio | Sold Separately |
| Final Drive Ratio | 17.92 |
| Speed Control | Sold Separately |
| Power System | Roller |
| Battery Tray Dimensions | 7.1 x 2.2 x 2.7 in (180 x 55 x 70mm) |
| Product Width | 18.15" (461 mm) |
| Brakes | Integral with ESC |
| Pinion | 12T |
| Scale | 1/8 |
| Battery | Sold Separately |
| Product Length | 23.39" (594 mm) |
| Spur Gear | 50T |
| Suspension | Independent |
| Ball Bearings | Full Set |
| Chassis | CNC 7075-T6 Aluminum plate, 0.12" (3mm) thick |
| Completion Level | Roller |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Product Height | 7.68" (195 mm) |
| Top Speed | 60+ |
| Tire Compound | Clay |
| Wheel Hex Size | 17mm |
| Approximate Assembly Time | 1-3 Hours |
| Body |
Painted, decaled and trimmed |
